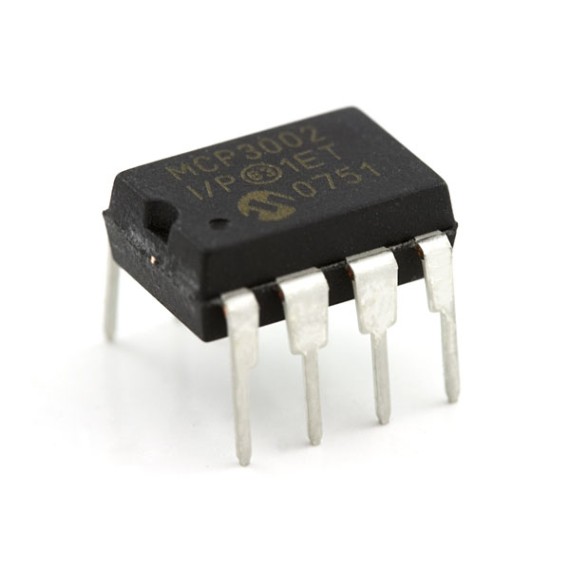

Analog to Digital Converter - MCP3002

από Microchip

The MCP3002 has a 10-bit analog to digital converter (ADC) with a simple to use SPI interface. Use this IC if your microcontroller does not have an ADC or have enough ADC lines. A great chip when you need to add additional ADC lines.

05-00013002
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Microchip
Part Number: MCP3002-I/P
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.20
Χωρίς ΦΠΑ 3.39
+

ΠΕΡΙΓΡΑΦΗ

The MCP3002 has a 10-bit analog to digital converter (ADC) with a simple to use SPI interface. Use this IC if your microcontroller does not have an ADC or have enough ADC lines. A great chip when you need to add additional ADC lines.
Χαρακτηριστικά:

  • 2.7V to 5.5V supply
  • 10-bit resolution
  • 8-pin DIP package
  • 3 wire SPI interface
  • Up to 75,000 samples per second
  • Low power shutdown

Αρχεία:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Microchip
Part Number:
MCP3002-I/P
Μικτό Βάρος:
0.000492kg
Χώρα Προέλευσης:
Κίνα
