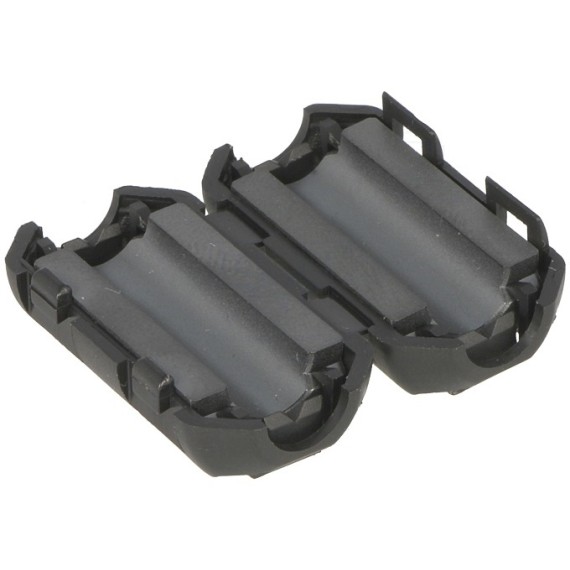

Antiparasitic Ferrite for Cable 7mm

05-00019983
Gross Weight: 0kg
Company: Ferrocore
In Stock
Ships in 24 Hours
No stock in retail store
1.20
Without VAT 0.97
+
WISHLIST COMPARE

SPECIFICATIONS

  • Type of ferrite: Two-piece
  • Ferrite application: On round cable
  • Max. wire diameter: 7mm
  • Impedance at 25MHz: 70Ω
  • Impedance at 100MHz: 130Ω
  • Core material: Ni-Zn ferromagnetic
  • Enclosure material: Polyamide

FEATURES

  • For mounting on mains cable
  • Plastic sheath
  • Reduce electromagnetic interference
  • Snap fastening enables multiple montage and demontage

Διαστάσεις

  • A dimension: 17mm
  • B dimension: 15mm
  • C dimension: 7mm
  • D dimension: 30mm
  • E dimension: 2.5mm
