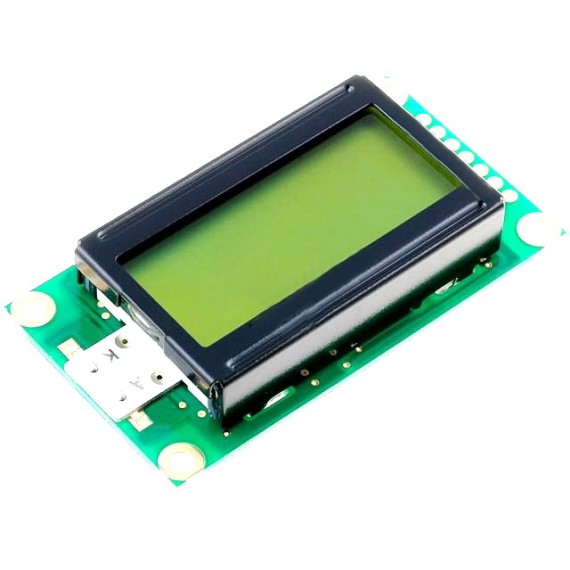

Basic 8x2 Character LCD - Black on Green 5V

by Raystar

This is a basic 8 character by 2 line display with black text on green background. The screen utilizes the extremely common HD44780 parallel interface chipset.

05-00124582
Volumetric weight: 0.04kgs
Company: Raystar
Made in: China
Out of Stock
Product out of stock
Low stock in store
4.00
Without VAT 3.22

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This is a basic 8 character by 2 line display with black text on green background. The screen utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes LED backlight.

SPECIFICATIONS

Type:
Character LCD
Number of Characters:
8x2
Display Color:
Green
Interface:
  • Parallel

EXTRA SPECIFICATIONS

  • Display type: LCD
  • Display type: Alphanumeric
  • Display technology: STN Positive
  • Number of characters (columns x lines): 8x2
  • Backgr. colour: Green
  • Illumination: LED
  • Controller type: ST7066, or equivalent
  • Backlight colour: Yellow
  • Number of pins: 14
  • Type of pin configuration: 2x7

Dimensions

  • 58 x 32 x 13.5mm
  • Window (H x W): 38 x 16mm
  • Contacts pitch: 2.54mm
