Bearing Mount - Side Tapped (1/2" Bore)

από SERVOCITY

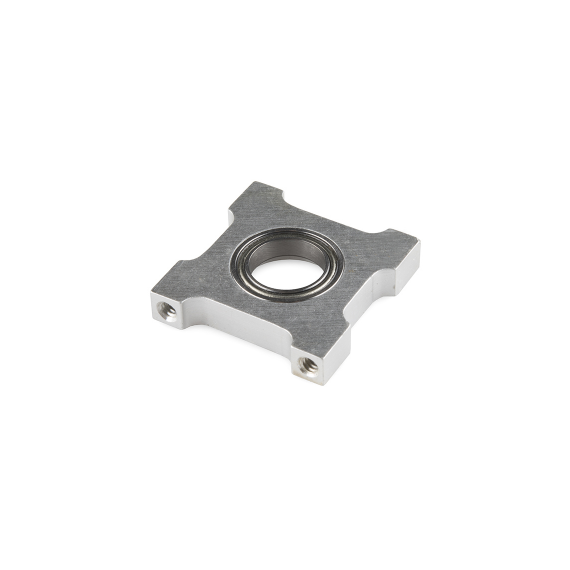

Quad block bearing mounts attach to the inside of a channel and have a ball bearing with a 1/2” bore for shafts.
17-00535138
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 535138
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.30
Χωρίς ΦΠΑ 7.50
+

ΠΕΡΙΓΡΑΦΗ

Quad block bearing mounts attach to the inside of a channel and have a ball bearing with a 1/2” bore for shafts. These bearing mounts have a width of 1.32”, a thickness of 0.25”, a 0.50” bore bearing, and utilize the 0.77” hub pattern.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
535138
Μικτό Βάρος:
0.013605kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
Pillow Block
Εσ.Διάμετρος / Άξονας:
12.7mm
Λίπανση:
Oil
Θωράκιση:
Metal Shielded
Υλικό:
Stainless Steel

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Product Weight: 0.48 oz
  • Material: Aluminum
  • Bearing ID: 0.500"
  • Static Load: 114 lbs
  • Dynamic Load: 200 lbs
  • Max RPM: 24,000
