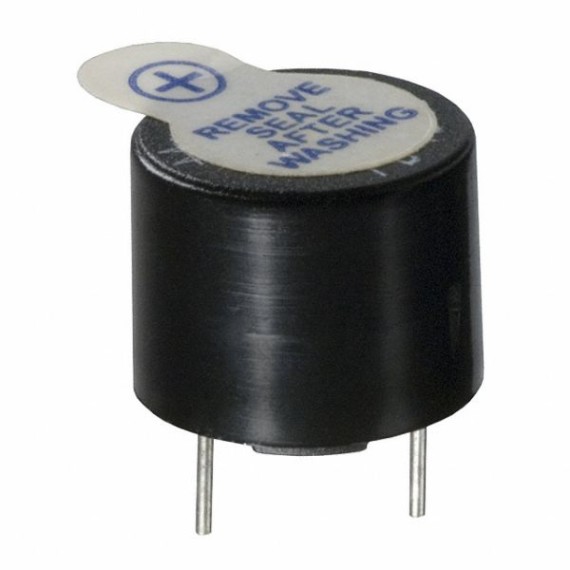

Buzzer 5V

by OEM

This is a small 12mm round speaker that operates around the audible 2kHz range.

19-00012533
Volumetric weight: 0kgs
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
0.4000
Without VAT 0.32
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.3200 0.2800 0.2401
WISHLIST COMPARE

DESCRIPTION

Electromagnetic sound emitter (buzzer) HCM12..X converts electrical signal into sound. An electromagnet with a magnetic membrane is placed on the housing. With the passage of electric current through the magnet an alternating magnetic field is formed, under the influence of which the membrane begins to oscillate, thereby creating a sound signal.

SPECIFICATIONS

Breadboard Friendly :
Yes

EXTRA SPECIFICATIONS

  • Emitter type: Electromagnetic, generator
  • Supply voltage: 3-7 VDC
  • Operating voltage: 5 VDC
  • Current consumption: 30 mA
  • Operating frequency: 2.3 kHz
  • Radiation power: 85dB
  • Signal type: Continuous tone
  • Features: Built-in generator
  • Mounting method: On board, Into hole

Dimensions

  • ø12 x 9.5mm
  • Weight: 2g
