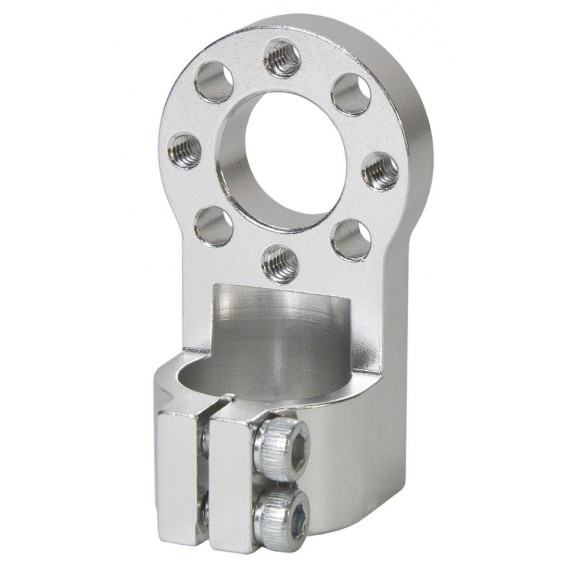

Clamping Mount 90° 5/8" Bore

από SERVOCITY
Our 90° Patterned Clamping Mount offer a great way to attach our 0.625” diameter hollow tubes together. Eight equally spaced through holes are consistent...
17-00545368
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 545368
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
11.10
Χωρίς ΦΠΑ 8.95
+

ΠΕΡΙΓΡΑΦΗ

Our 90° Patterned Clamping Mount offer a great way to attach our 0.625” diameter hollow tubes together. Eight equally spaced through holes are consistent with all of our other items that have the same 0.770” hub pattern. Precision machined from aluminum, these clamping hubs offer several advantages over set screw hubs. First, they do not damage the shaft which they are attached. Second, they offer more holding power in high torque applications. The included side clamping machine screws are 6-32 and accept a 7/64” hex key.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
545368
Μικτό Βάρος:
0.013605kg
Τύπος :
Clamping Mount
Εσωτερική Διάμετρος:
15.87mm

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Material: Aluminum
