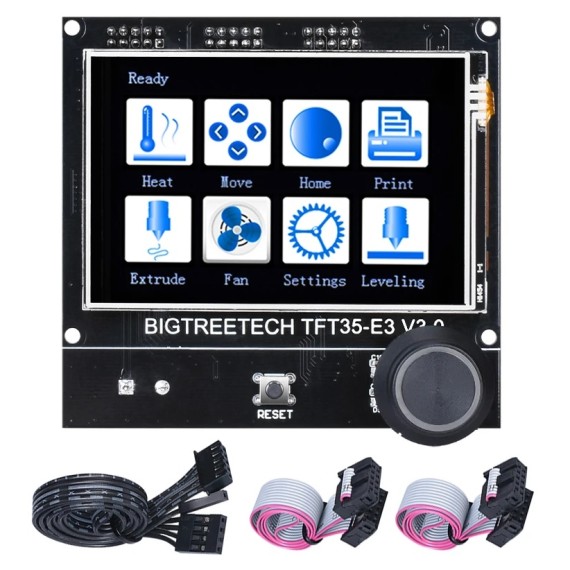

Colorful TFT Display 3.5" - Touch Screen

by BIQU
BIGTREETECH TFT35-E3 V3.0 is a medium size, dual-mode, ultra-clear 3D printing machine display launched by the 3D printing team of Shenzhen BIGTREE...
59-00018837
Gross Weight: 0.18kg
Company: BIQU
Part Number: ZZB000378
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

DESCRIPTION

BIGTREETECH TFT35-E3 V3.0 is a medium size, dual-mode, ultra-clear 3D printing machine display launched by the 3D printing team of Shenzhen BIGTREE Technology CO., LTD., which can perfectly replace the original LCD screen of Ender3 printer.

This board can replace the original LCD screen of Ender3 printer.

Product Advantages

  1. ARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120MHz
  2. Upgrade the firmware by SD card. It is easy and convenient to operate.
  3. This display board has higher compatibility. Users can select two work modes: UART serial port screen mode and 12864 screen mode.
  4. Serial port screen mode supports two printing modes: SD card and U disk.
  5. Reserve WIFI port, and WIFI function is realized by external WIFI module
  6. Reserve the extension port of filament breaking detection (FIL-DET)
  7. Reserve the extension port of automatic shutdown after printing (PS-ON)
  8. LCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are LCD screen ports of normal motherboard. EXP3 is the LCD interface used by E3 series motherboard (such as SKR MINI E3 V1.2, SKR E3 DIP V1.1, etc.)
  9. TFT touch screen mode:serial port screen RS232 port; 10)2 sets of UART serial port extension ports are reserved for DIY use.

SPECIFICATIONS

  • Working Mode:
    • Touch screen mode
    • 12864LCD mode
  • Appearance Size: 93x87mm
  • Installation Size: Perfectly replace the original LCD screen of Ender3 printer
  • Microprocessor: STM32F207VCT6
  • Power Input: DC 5V
  • SD Card Logic Voltage: 3.3V and 5V
  • Application Use For: SKR MINI E3, SKR V1.3, SKR PRO, etc
  • Support Printing Mode: SD Card and USB Flash Drive

VIDEO

BTT TFT35-E3 V3.0,perfect upgrade Ender 3 original LCD.
