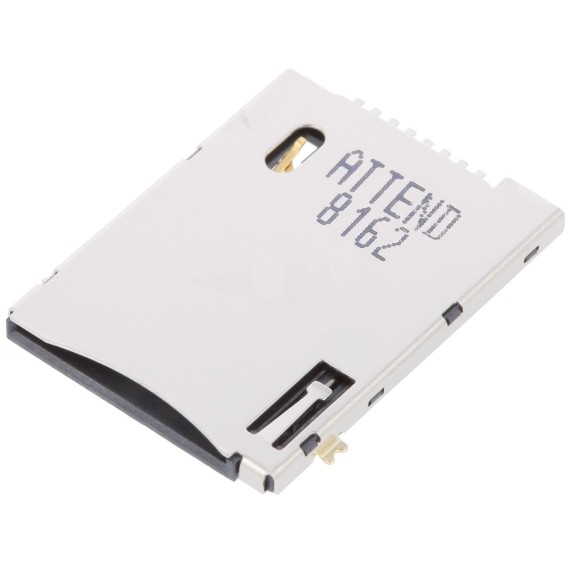

Connector For SIM Card SMD - Push-Push

05-00010178
115A-ADA0-R02
ΚατασκευαστήςATTEND Part Number115A-ADA0-R02
Διαθέσιμο
Αποστολή σε 24 ώρες
180
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

SIM Card Socket Push-Push Type, 6+2 Pin w/switch, 10u"

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.

  • Type of connector: For cards
  • Kind of card: SIM
  • Connector variant: Push-push
  • Mounting: SMD
  • Contact plating: Gold-plated
  • Number of pins: 6
  • Card connector features: Contact for card presence detection
  • Operating temperature: -55...85°C
  • Flammability rating: UL94V-0
  • Contact material: Phosphor bronze
  • Max. operating current: 500mA
  • Test voltage: 250V
Τύπος Ακροδέκτη
  • SIM Socket
Κατασκευαστής
ATTEND
Μικτό Βάρος
0.001kg
Βρες Παρόμοια
