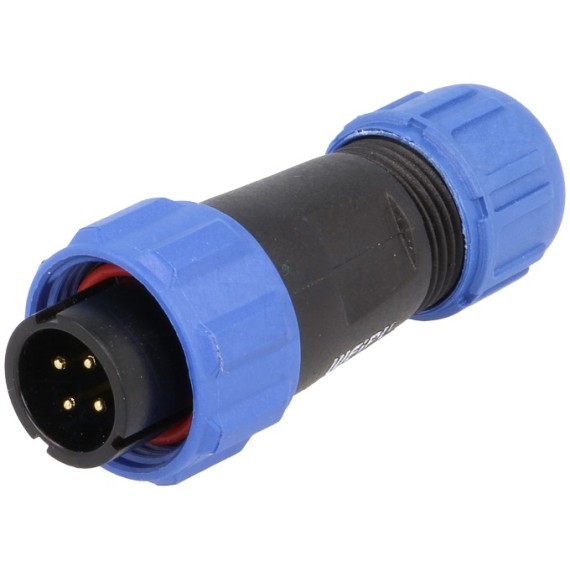

Connector SP13 4-Pin Male

by Weipu
05-00011352
Gross Weight: 0kg
Company: Weipu
Part Number: SP1310/P4I
Made in: China
Out of Stock
Product out of stock
No stock in retail store
4.20
Without VAT 3.39

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Connector Type:
  • SP13 Series
Connector Type:
  • Male
Number of Pins:
4 Pin
Contact Current Max. :
5A

SPECIFICATIONS

  • Type of connector: Circular
  • Connector: Plug
  • Kind of connector: Male
  • Connector series: SP13
  • Number of pins: 4
  • IP rating: IP68
  • Cable external diameter: 4...6.5mm
  • Current rating: 5A
  • Electrical mounting: Soldering
  • Mechanical mounting: For cable
  • Rated voltage: 200V
  • Wire cross section: 0.75mm2
  • Locking system: Threaded joint, internal thread
  • Operating temperature: -40...85°C
