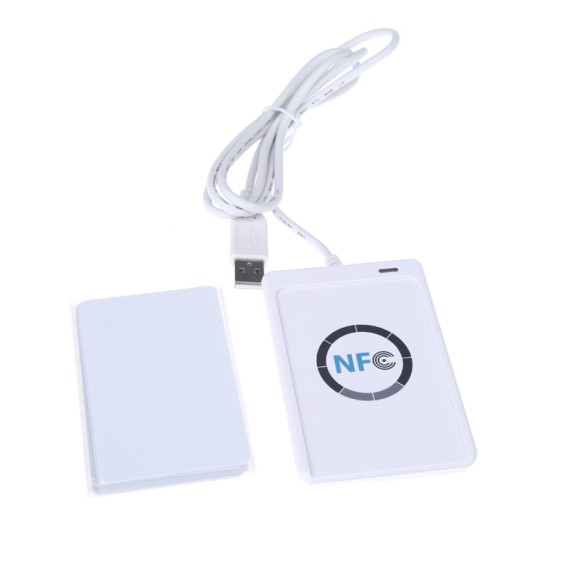

Contactless Smart Reader & Writer USB - NFC ACR122U RFID

by OEM
USB full speed (12Mbps). USB PnP. Bi-color LED. Built-in antenna. NFC reader. ISO/IEC18092 (NFC) compliant. NFC tags access speed =...
Company: OEM
Part Number: HR0407
Made in: China
Out of Stock
Product out of stock
No stock in retail store
Without VAT 36.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart


  • USB full speed (12Mbps).
  • USB PnP.
  • Bi-color LED.
  • Built-in antenna.
  • NFC reader.
  • ISO/IEC18092 (NFC) compliant.
  • NFC tags access speed = 424kbps.
  • Contactless smart card reader.
  • Support FeliCa card.
  • Support ISO 14443 Type A & B cards - for MIFARE® cards (Classics, DES Fire).
  • CCID standard.
  • CE and FCC certificated, and RoHS compliant.
  • User controllable buzzer.
  • SAM socket.


  • 1x ACR122U NFC Contactless Smart Card Reader
  • 3x S50 Cards


  • Home banking and home shopping
  • E-commerce
  • Checking the balance of electronic purses
  • Network access control
  • Customer loyalty program
  • Identification and authentication
  • Ticketing
  • Online gaming
  • Parking and toll collection
  • Automatic fare collection
  • Public transportation terminals
  • Physical access control
  • Time attendance
  • Vending machines
  • Contactless public phones
  • Logistics and supply chain management


Sensor Type:
  • NFC
  • RFID
Typical Input Voltage:
  • 5VDC
Oparating Current:
  • Digital


  • Interface: USB Full Speed
  • Operating distance: <= 50mm
  • Supply voltage: Regulated 5V DC
  • Supply current:
    • 200mA (operating)
    • 50mA (standby)
    • 100mA (normal)
  • Operating temperature: 0-50 degrees Celsius
  • Operating frequency: 13.56MHz
  • Standards/certifications: ISO14443 1-4, CE, FCC, RoHS compliant
  • Operating system support: Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 6, Android 3.1 and above
  • Card reader size: 98x65x13mm
  • Card reader weight: 76g
