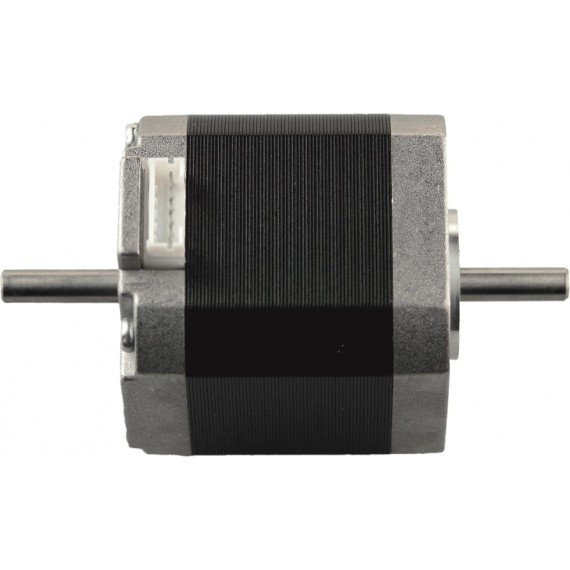

Creality 3D 42-48 Stepper Motor with Dual Shaft

από CREALITY
Creality 3D 42-48 Motor with Dual Shaft Used on the Y-axis on the Ender-5 Plus. The table bellow shows which size stepper motor that fits which axis on...
26-00024415
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: CREALITY
Part Number: 4004100016
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 15.92

ΠΕΡΙΓΡΑΦΗ

Creality 3D 42-48 Motor with Dual Shaft
Used on the Y-axis on the Ender-5 Plus.

The table bellow shows which size stepper motor that fits which axis on the different Creality 3D models:

  X-axis Y-axis Z-axis Extruder
CR-10 Mini 42-34 42-34 42-34 42-40
CR-10S (300) 42-40 42-40 42-34 42-40
CR-10-S4 (400) 42-40 42-60 42-34 42-40
CR-10-S5 (500) 42-40 42-60 42-34 42-40
CR-10S Pro 42-40 42-40 42-34 42-40
CR-X 42-40 42-40 42-34 42-40
CR20 Pro 42-34 42-34 42-34 42-40
Ender-3 42-34 42-34 42-34 42-40
Ender-3 Pro 42-34 42-34 42-34 42-40
Ender-5 42-34 42-40
(dual shaft)
42-34
(round shaft)
42-40
Ender-5 Pro 42-34 42-40
(dual shaft)
42-34 42-40
Ender-5 Plus 42-34 42-48
(dual shaft)
42-34 42-40

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
CREALITY
Part Number:
4004100016
Μικτό Βάρος:
0.003kg
Χώρα Προέλευσης:
Κίνα
Συμβατότητα Εκτυπωτή:
  • Ender-5 Plus

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Step angle: 1.8 degrees
  • Steps: 200
  • Nominal Voltage: 4.83V
  • Current Rating: 1.5A
  • Rated speed: 1-1000rpm
  • Rated torque: 0.4NM
  • Ambient Temperatuar: -20 - 50℃
  • Length: 48mm
