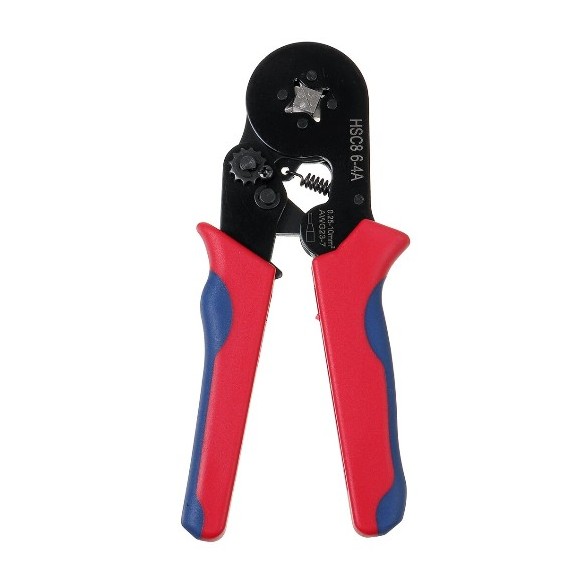

Πρέσα Ακροδεκτών για Bootlace Ferrules - WXC8

από OEM
It is applicable for tubular non insulated terminal and pre-insulated terminal on non-welding  electrical connection. The required pressing force must...
39-00032840
Ογκομετρικό βάρος: 0.2kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
14.80
Χωρίς ΦΠΑ 11.94
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 11.84

ΠΕΡΙΓΡΑΦΗ

It is applicable for tubular non insulated terminal and pre-insulated terminal on non-welding electrical connection.

The required pressing force must be reached before the brake unit automatically release the jaw of the pliers.

High quality crimping standard ensured during consistant crimping.

Perfect gripping position, compact structure, lightweight and ergonomically designed handle, it saves much operator’s power.

Specially hardened steel.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.2kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type: WXC8 6-4
  • Capacity: 0.25-6.0mm2
  • AWG: 23-10 AWG
  • Dimensions: 175x70x20mm
  • Weight: 0.36kg

ΔΥΝΑΤΟΤΗΤΕΣ

  • Adjustable ratchet mechanism, total crimping range: 0.5-6mm².
  • Wire end ferrules, four mandrel design satisfy different sizes of casing pressure to the terminal.
  • Self regulation according to the size of terminal, easy operation.
  • Light compact structure and handle design, ensure perfect crimping effect.
  • Widely applicable for most types of non-insulated and insulated terminals and connectors.
