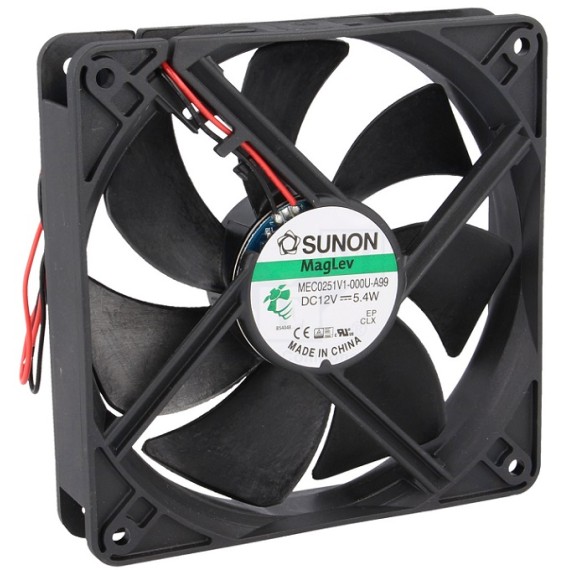

DC Fan 120x120x25mm 12V - MagLev

από Sunon
05-00025825
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sunon
Part Number: MEC0251V1-000U-A99
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
13.60
Χωρίς ΦΠΑ 10.97
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sunon
Part Number:
MEC0251V1-000U-A99
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Μέγεθος Aνεμιστήρα:
120x120mm
Είδος Ρουλεμάν:
Vapo (MagLev)
Τάση Τροφοδοσίας:
12VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Operating voltage: 6...13.8V
  • Power consumption: 5.4W
  • Current rating: 0.451A
  • Fan efficiency: 183.8m3/h
  • Noise level: 44.5dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 3100 (±10%)rpm
  • Current and power consumption tolerance: ±15%
  • Min. insulation resistance: 10MΩ
  • Additional functions: Autorestart
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 7.11mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Fan dimensions: 120x120x25mm
  • Weight: 157g
  • Cable length: 330mm
  • Wire size: 24AWG
