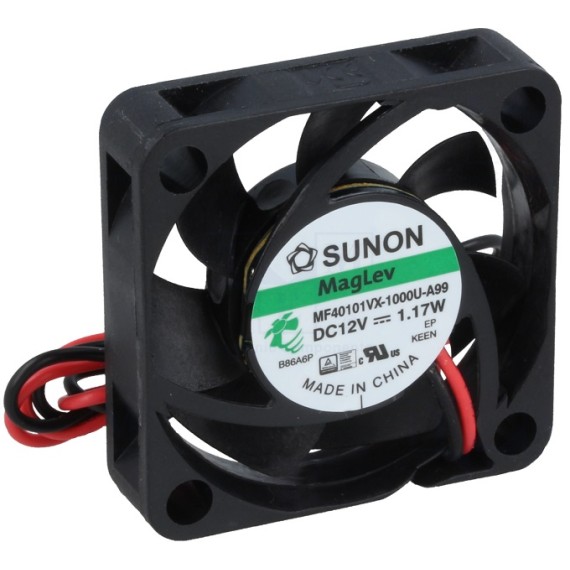

DC Fan 40x40x10mm 12V - MagLev

by Sunon
05-00401001
Gross Weight: 0kg
Company: Sunon
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
4.60
Without VAT 3.71
+
WISHLIST COMPARE

SPECIFICATIONS

Fan Size:
40x40
Kind of Bearing:
Vapo (MagLev)
Supply voltage:
12VDC

SPECIFICATIONS

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Operating voltage: 4.5...13.8V
  • Power consumption: 1.05W
  • Current rating: 87mA
  • Fan efficiency: 16.73m3/h
  • Noise level: 31.4dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 8500rpm
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 6.35mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Fan dimensions: 40x40x10mm
  • Weight: 15.6g
  • Cable length: 300mm
  • Wire size: 28AWG
