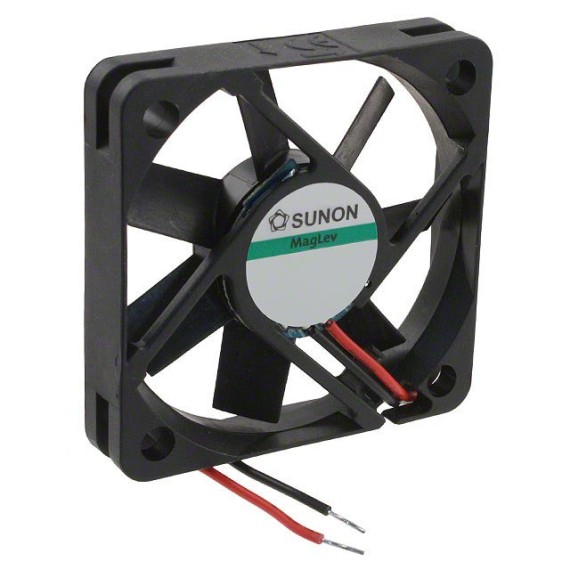

DC Fan 50x50x10mm 12V - MagLev (MF50101V2-1000U-A99)

από Sunon
05-05010199
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sunon
Part Number: MF50101V2-1000U-A99
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sunon
Part Number:
MF50101V2-1000U-A99
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Μέγεθος Aνεμιστήρα:
50x50mm
Είδος Ρουλεμάν:
Vapo (MagLev)
Τάση Τροφοδοσίας:
12VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Operating voltage: 6...13.8V
  • Power consumption: 0.6W
  • Rated current: 0.05A
  • Fans efficiency: 18.59m3/h
  • Noise level: 25.6dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 4800 (±15%)rpm
  • Current and power consumption tolerance: ±15%
  • Min. insulation resistance: 10MΩ
  • Additional functions: Autorestart
  • Fan material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 2.79mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Fan dimensions: 50x50x10mm
  • Weight: 19.5g
  • Cable length: 295mm
  • Wire size: 26AWG
