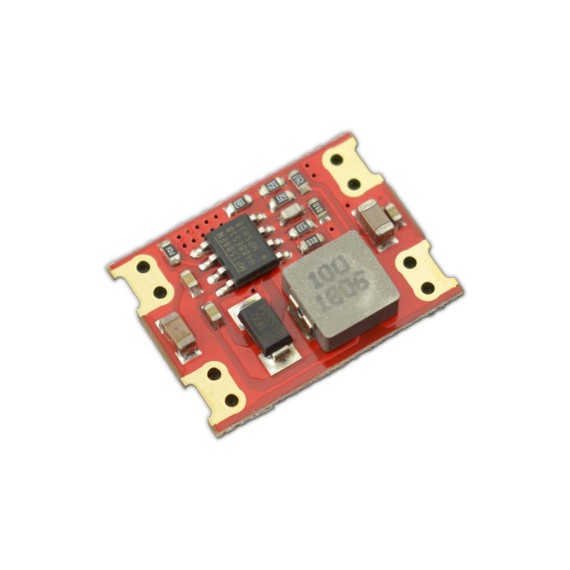

DC-DC Step Down Power Module - 5V 1.6A

από DFROBOT
This is a DC-DC buck-mode power module, with input voltage range 8V~28V and fixed output voltage/current 5V/1.6A. Its work frequency can reach to 0.5MHz. The module has high conversion rate and small size, easy to embed.
25-00016910
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0571
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+

ΠΕΡΙΓΡΑΦΗ

This is a DC-DC buck-mode power module, with input voltage range 8V~28V and fixed output voltage/current 5V/1.6A. Its work frequency can reach to 0.5MHz. The module has high conversion rate and small size, easy to embed.

Besides, it has steady output voltage, which can work long time without voltage shift and is suitable for the occasions with high requirements. This product can work with some high-capacity and high-voltage batteries to DIY some mobile power. It can also be embedded into your project to provide multiple power options.

Applications

Power supply for controller main-board, DIY current source, floodlight, DIY toy car, communication device, digital radio

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Step-Down
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0571
Τάση Εισόδου:
18-28Volt
Τάση Εξόδου:
5Volt
Μικτό Βάρος:
0.02kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Small size
  • Stable performance
  • Wide voltage range for a variety of DIY applications

ΔΥΝΑΤΟΤΗΤΕΣ

  • Input Voltage: 8~28Vdc
  • Output Voltage: 5V
  • Output Accuracy: ±0.1V
  • The Maximum Output Peak Current: 3A
  • Full-Load Output Ripple: Vpp<50mV
  • No-Load Current: IQ 0.5mA
  • Switch-Off Function: Not Support
  • Operating Temperature: -20℃ ~ +85℃
  • Operating Humidity: 20% ~ 90% relative humidity, no condensation

  • Storage Temperature: -10℃ ~ +50℃
  • Installation Method: Chip-mounting or 2.54mm pin plug-in
  • With or Without Isolation: Without Isolation
  • Service Life: 50000h
  • Dimension : 16.5×22mm/0.65×0.87inch
NOTE
  • The input voltage must within 28V.
  • Load current should not be in 3A or above for a long time, otherwise it will affect the service life of the module and even burn out.
  • If the load current is relatively high, you should increase the minimum input voltage to ensure normal operation.
