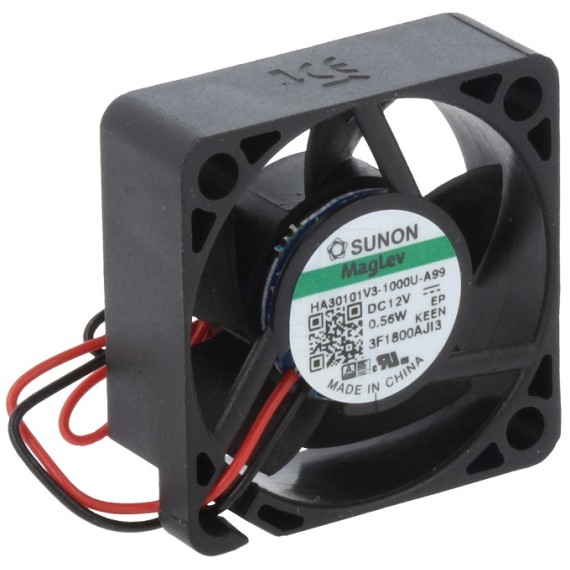

DC Fan 30x30x10mm 12V - MagLev - HA30101V3

by Sunon
05-00033902
Gross Weight: 0kg
Company: Sunon
Part Number: HA30101V3-1000U-A99
Made in: China
Upon order
Delivery on 1 - 3 Days
No stock in retail store
6.80
Without VAT 5.48
+
WISHLIST COMPARE

SPECIFICATIONS

Fan Size:
30x30
Kind of Bearing:
Vapo (MagLev)
Supply voltage:
12VDC

SPECIFICATIONS

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Power consumption: 560mW
  • Current rating: 25mA
  • Fan efficiency: 5.92m3/h
  • Noise level: 15.1dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 7000 (±20%)rpm
  • Current and power consumption tolerance: ±15%
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads 2: leads
  • Operating temperature: -10...70°C
  • Static pressure: 2.54mm H2O
  • Fan motor brushless: DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 6...13.8V
  • Fan dimensions: 30x30x10mm
  • Weight: 7.8g
  • Wire size: 28AWG
  • Cable length: 145mm
