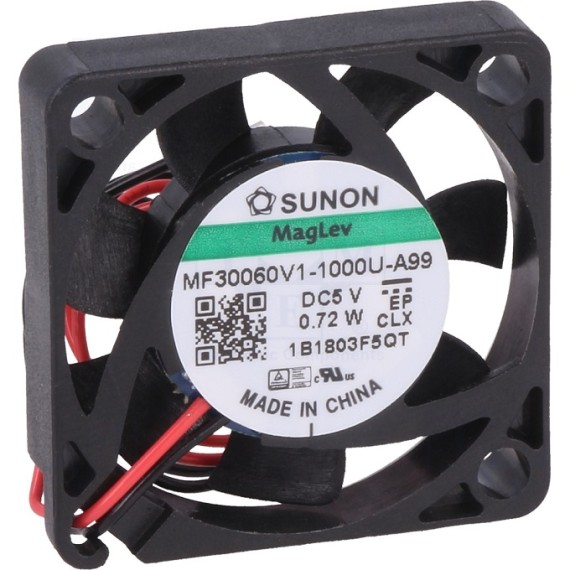

DC Fan 30x30x6mm 5V - MagLev - MF30060V1

by Sunon
05-00033901
Gross Weight: 0kg
Company: Sunon
Part Number: MF30060V1-1000U-A99
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
8.60
Without VAT 6.94
+
WISHLIST COMPARE

SPECIFICATIONS

Fan Size:
30x30
Kind of Bearing:
Vapo (MagLev)
Supply voltage:
5VDC

SPECIFICATIONS

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 5V DC
  • Power consumption: 560mW
  • Current rating: 112mA
  • Fan efficiency: 8.28m3/h
  • Noise level: 23.6dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 9100rpm
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads 2: leads
  • Operating temperature: -10...70°C
  • Static pressure: 4.32mm H2O
  • Fan motor brushless: DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 2.5...6V
  • Fan dimensions: 30x30x6mm
  • Weight: 6g
  • Wire size: 28AWG
  • Cable length: 145mm
