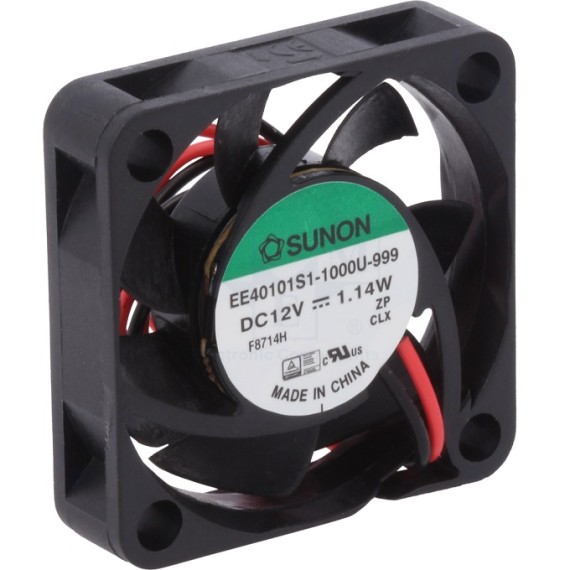

DC Fan 40x40x10mm 12V - Slide Bearing - EE40101S1

by Sunon
05-00040960
Gross Weight: 0kg
Company: Sunon
Part Number: EE40101S1-1000U-999
Made in: China
Out of Stock
Product out of stock
Low stock in store
2.60
Without VAT 2.10

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Fan Size:
40x40
Kind of Bearing:
Slide bearing
Supply voltage:
12VDC

SPECIFICATIONS

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Power consumption: 1.14W
  • Current rating: 82mA
  • Fan efficiency: 13.87m3/h
  • Noise level: 28.8dBA
  • Kind of Bearing: Slide bearing
  • Rotational rate/speed: 7300rpm
  • Current and power consumption tolerance: ±15%
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads 2: leads
  • Operating temperature: -10...70°C
  • Static pressure: 4.83mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 4.5...13.8V
  • Fan dimensions: 40x40x10mm
  • Weight: 15.6g
  • Wire size: 26AWG
  • Cable length: 300mm
