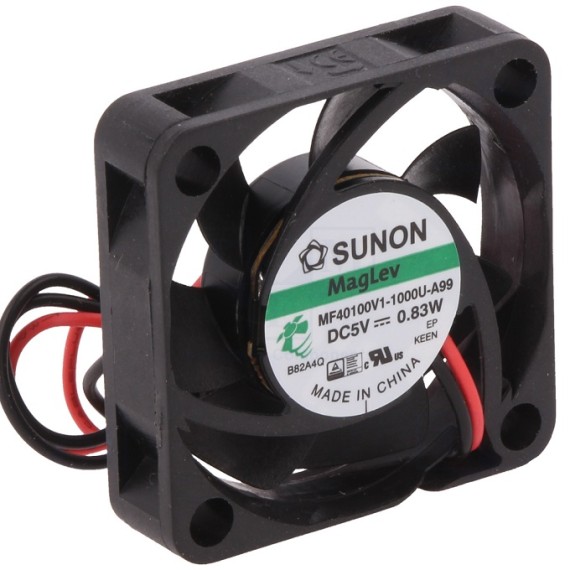

DC Fan 40x40x10mm 5V - MagLev

από Sunon
05-00040958
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sunon
Part Number: MF40100V1-1000U-A99
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση 1 με 3 ημέρες
Χαμηλό απόθεμα στο κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sunon
Part Number:
MF40100V1-1000U-A99
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Μέγεθος Aνεμιστήρα:
40x40mm
Είδος Ρουλεμάν:
Vapo (MagLev)
Τάση Τροφοδοσίας:
5VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 5V DC
  • Power consumption: 0.83W
  • Current rating: 0.138A
  • Fan efficiency: 13.52m3/h
  • Noise level: 27.3dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 7000rpm
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 4.83mm H2O
  • Fan motor brushless: DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 3.5...6V
  • Fan dimensions: 40x40x10mm
  • Weight: 15.6g
  • Cable length: 300mm
  • Wire size: 26AWG
