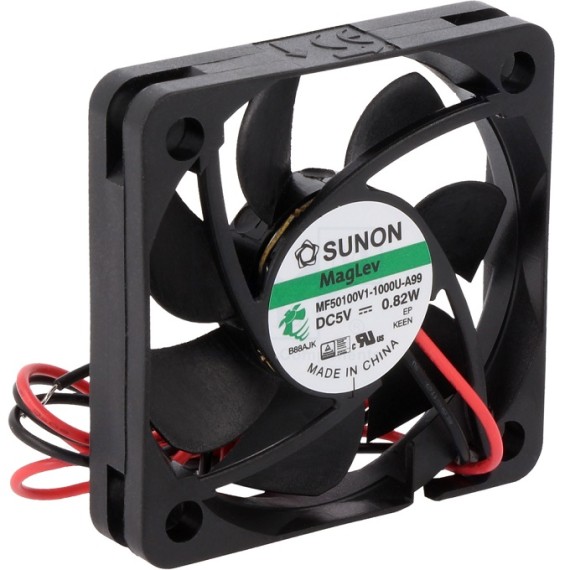

DC Fan 50x50x10mm 5V - MagLev - MF50100V1

by Sunon
05-00050881
Gross Weight: 0kg
Company: Sunon
Part Number: MF50100V1-1000U-A99
Made in: China
Out of Stock
Product out of stock
No stock in retail store
5.80
Without VAT 4.68

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Fan Size:
50x50
Kind of Bearing:
Vapo (MagLev)
Supply voltage:
5VDC

SPECIFICATIONS

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 5V DC
  • Power consumption: 780mW
  • Current rating: 155mA
  • Fan efficiency: 23.32m3/h
  • Noise level: 30.7dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 5800rpm
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 3.81mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 3.5...6V
  • Fan dimensions: 50x50x10mm
  • Weight: 19.5g
  • Wire size: 26AWG
  • Cable length: 295mm
