ΔΩΡΕΑΝ ΜΕΤΑΦΟΡΙΚΑ για παραγγελίες άνω των 85.00 έως 2kg

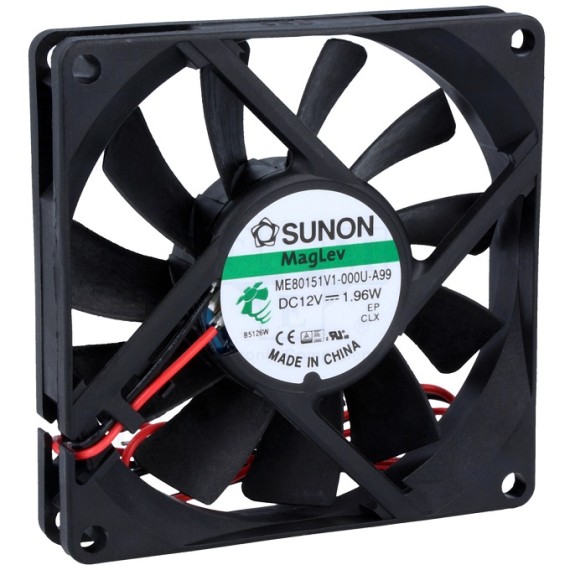

DC Fan 80x80x15mm 12V - MagLev - ME80151V1

από Sunon
05-00091001
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sunon
Part Number: ME80151V1-000U-A99
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
8.20
Χωρίς ΦΠΑ 6.61
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sunon
Part Number:
ME80151V1-000U-A99
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Μέγεθος Aνεμιστήρα:
80x80mm
Είδος Ρουλεμάν:
Vapo (MagLev)
Τάση Τροφοδοσίας:
12VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 12V DC
  • Power consumption: 1.96mW
  • Current rating: 0.163A
  • Fan efficiency: 62.86m3/h
  • Noise level: 34.7dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 3000(±10%)rpm
  • Current and power consumption tolerance ±15%
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 3.55mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 4.5...13.8V
  • Fan dimensions: 80x80x15mm
  • Weight: 68g
  • Wire size: 24AWG
  • Cable length: 300mm

ΑΡΧΕΙΑ
