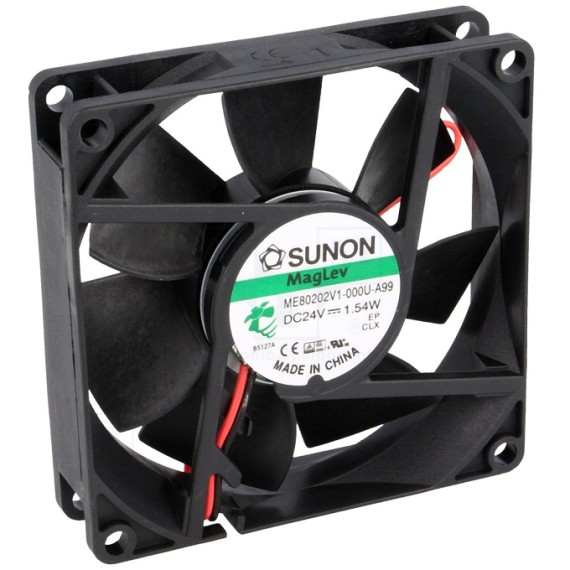

DC Fan 80x80x20mm 24V - MagLev - ME80202V1

από Sunon
05-00081014
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Sunon
Part Number: ME80202V1-000U-A99
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.80
Χωρίς ΦΠΑ 5.48
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Sunon
Part Number:
ME80202V1-000U-A99
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Μέγεθος Aνεμιστήρα:
80x80mm
Είδος Ρουλεμάν:
Vapo (MagLev)
Τάση Τροφοδοσίας:
24VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of fan: DC
  • Kind of fan: Axial
  • Supply voltage: 24V DC
  • Power consumption: 1.54W
  • Current rating: 0.064A
  • Fan efficiency: 61.16m3/h
  • Noise level: 38dBA
  • Kind of Bearing: Vapo
  • Rotational rate/speed: 3300(±10%)rpm
  • Current and power consumption tolerance ±15%
  • Min. insulation resistance: 10MΩ
  • Impeller material: Thermoplastic
  • Enclosure material: Thermoplastic
  • Insulation class: A
  • Leads: 2 leads
  • Operating temperature: -10...70°C
  • Static pressure: 4.57mm H2O
  • Fan motor: Brushless DC motor
  • Flammability rating: UL94V-0
  • Additional functions: Autorestart
  • Operating voltage: 8...27.6V
  • Fan dimensions: 80x80x20mm
  • Weight: 66g
  • Wire size: 24AWG
  • Cable length: 300mm
