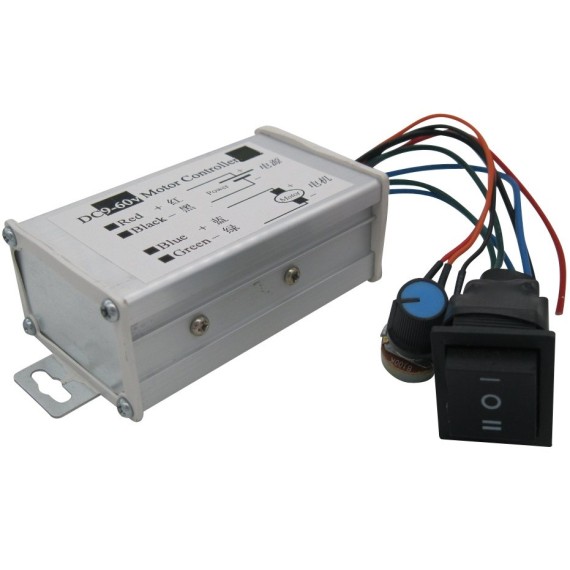

DC Motor PWM Speed Controller 9-60V 10A with Direction Control

39-00011827
Διαθέσιμο
Αποστολή σε 24 ώρες
800
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
6.40
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Speed controller is made with high quality circuit board which ensures a longer service life.

Suitable for the DC motor (or DC load) within 10A.

It with metal shell and connective label,very easy to install and use.

Potentiometer with adjust speed swtich function,and button swtich function.

Direction control for clockwise or counterclockwise rotation.



ΣΗΜΕΙΩΣΕΙΣ

  • WARNING: Do NOT reverse positive and negative power loads. This will damage the controller. To change motor direction, interchange the positive and negative wires of motor.
  • If the controller is used for a long time, it is recommended to select the current of the motor within 5A, pay attention to the cooling of the module.
  • Operating instruction:
    • Before you attempting to wire the controller, make sure power is off.
      1. Connect wires refer to the "wiring diagram"
      2. Turn on the power
      3. Adjust the potentiometer
  • Type: Speed controller
  • Working voltage: DC9-60V
  • Maximum power: 600W
  • Output voltage: Linear under load
  • Maximum current: 10A
  • Continuous current: 8A
  • Speed control range: 0%-100%
  • Control frequency: 25KHz
  • Speed control mode: Use potentiometer regulating current
  • Function: Clockwise or counterclockwise rotation, Forward/Reverse
  • Dimensions: 91x51x36mm
  • Weight: 135g
  • Connection mode:
    • Red Line: Power +
    • Black Line: Power -
    • Blue Line: Motor +
    • Yello Line: Motor -





Κατασκευαστής
Oem
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
Max. Current per Channel
10 A
Τύπος Οδηγού
  • DC Motor
