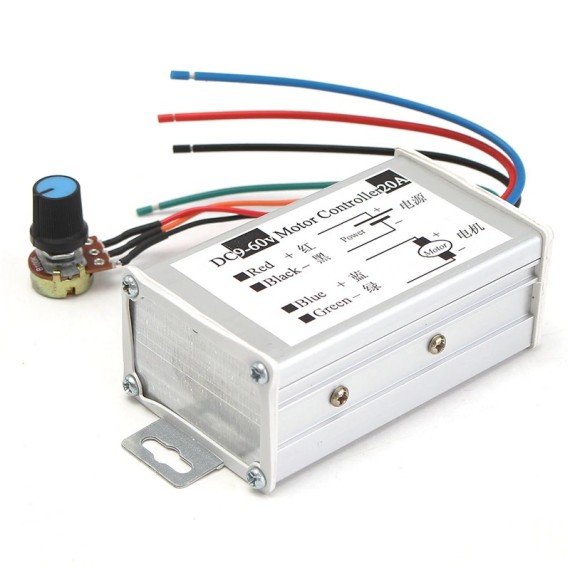

DC Motor PWM Speed Controller 9-60V 20A

by OEM
Speed controller is made with high quality circuit board which ensures a longer service life. Suitable for the DC motor (or DC load) within 20A....
14-00018820
Gross Weight: 0kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
9.90
Without VAT 7.98

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Speed controller is made with high quality circuit board which ensures a longer service life.

Suitable for the DC motor (or DC load) within 20A.

It with metal shell and connective label,very easy to install and use.

Potentiometer with adjust speed swtich function,and button swtich function.



NOTES

  • WARNING: Do NOT reverse positive and negative power loads. This will damage the controller. To change motor direction, interchange the positive and negative wires of motor.
  • Operating instruction:
    • Before you attempting to wire the controller, make sure power is off.
      1. Connect wires refer to the "wiring diagram"
      2. Turn on the power
      3. Adjust the potentiometer

SPECIFICATIONS

Driver Type:
  • DC Motor
Max. Current per Channel:
20A

EXTRA SPECIFICATIONS

  • Type: Speed controller
  • Working voltage: DC9-60V
  • Output voltage: Linear under load
  • Maximum current: 20A
  • Continuous current: 18A
  • Speed control range: 0%-100%
  • Control frequency: 25KHz
  • Speed control mode: Use potentiometer regulating current
  • Dimensions: 90x50x35mm
  • Weight: 135g
  • Connection mode:
    • Red Line: Power +
    • Black Line: Power -
    • Blue Line: Motor +
    • Green Line: Motor -
