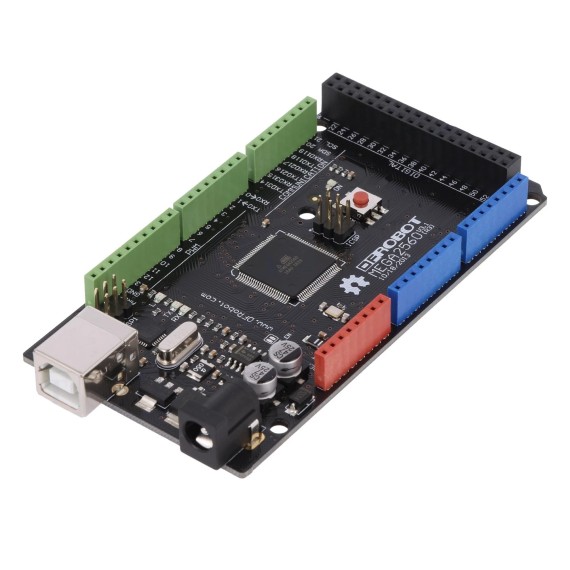

DFRduino Mega2560 (Arduino Mega 2560 R3 Compatible)

από DFROBOT
The new version of DFRduino Mega2560 has improved the VIN power supply circuit by changing the easily overheat LDO to DC-DC circuit for ensuring safety...
25-00016149
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0191
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
39.90
Χωρίς ΦΠΑ 32.18
+

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

The new version of DFRduino Mega2560 has improved the VIN power supply circuit by changing the easily overheat LDO to DC-DC circuit for ensuring safety and reliability in long-term use. In addition to optimizing the overheating issue, it offers a wider input voltage range. What’s more, DFRduino Mega2560 can work steadily even when only powered by a 3.7V lithium battery.

DFRduino Mega2560 is an ATmega2560-based microcontroller that provides full compatibility with "Arduino MEGA2560“. It features 54 digital I/O ports, 16 analog signal input ports, 4 UARTs(hardware serial ports), and a 16MHz crystal oscillator. The board comes with a bootloader that enables users to download programs directly via a USB. You can simply power it with a USB cable or a standard adapter or use a battery as external power. Mega 2560 has 256KB FLASH, two times of Mega1280, which could offer a larger create space for your projects.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0191
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Controller Model: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage(VIN): 3-16V(20V max)
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Inputs: 16 I/O
  • FLASH: 256 KB (of which 4 KB is used by the bootloader)
  • SRAM: 8KB
  • EEPROM: 4KB
  • Frequency: 16MHz
