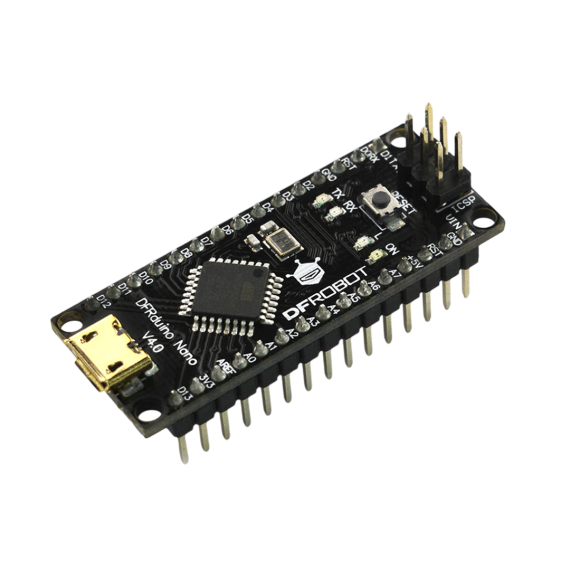

DFRduino Nano

από DFROBOT
The DFRduino Nano USB Microcontroller V3.1 (ATMega 328) is a breadboard ready version of the " Arduino mini" with integrated   USB . The "Arduino Nano"...
25-00016150
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0010
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+

ΠΕΡΙΓΡΑΦΗ

The DFRduino Nano USB Microcontroller V3.1 (ATMega 328) is a breadboard ready version of the " Arduino mini" with integrated USB. The "Arduino Nano" has everything that the Diecimila has (electronically) with more analog input pins and an on-board +5V AREF jumper. The "Arduino Nano" automatically senses and switches to the higher power supply, so there is no need for a power select jumper.

The nano's pin layout works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). The DFRobot DFRduino Nano USB Microcontroller V3.1 (ATMega 328) can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

ΣΗΜΕΙΩΣΕΙΣ

  • Version History:
    • v3.0 - improved the analog port pin mapping to be compatible with the original "Arduino Nano"
    • v3.1 - changed the Mini USB port to Micro USB port

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0010
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly
:
Ναι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Microcontroller: Atmel Atmega328-20AU
  • Operating Voltage (logic level): 5V
  • Input Voltage (recommended): 7-12V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (of which 2KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz

ΔΥΝΑΤΟΤΗΤΕΣ

  • Automatic reset during program download
  • Power OK blue LED on the bottom
  • Green (TX), red (RX), and orange (L) LED
  • +5V to AREF jumper
  • Auto-sensing/switching power input
  • Small mini-B USB for programming and serial monitor (cable not included)
  • ICSP header for direct program downloads
  • Power OK blue LED on the bottom
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch
