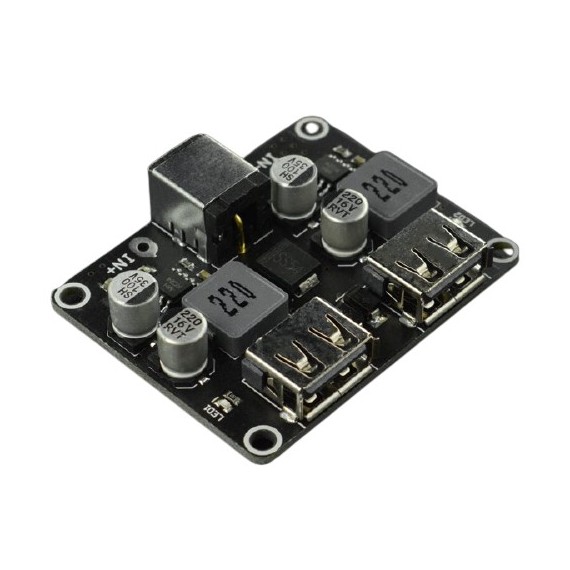

DFRobot 2-way Fast Charge Buck Module

by DFROBOT
This 2 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the...
25-00016128
Company: DFROBOT
Part Number: DFR0849
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
7.20
Without VAT 5.81
+
WISHLIST COMPARE

DESCRIPTION

This 2 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market. Compared with products without charging recognition function, this module can save a lot charging time by triggering the peak current via fast charging protocol. It features 6~32V input and 3~12V output(default 5V). The voltage can be changed through fast-charging decoy. Multiple fast-charging protocols are supported and the 2 channels work independently.

With steady output, this Fast Charge Module is able to work for a long time without voltage shift. It can be suitable for projects like mobile phone fast charging, Car charging retrofit, solar charger, DIY power source, etc.



NOTES

  • Compatible with Raspberry Pi 4B & Jetson Nano

SPECIFICATIONS

Raspberry Compatible:
  • Model 4 B
Chemistry:
  • Lithium-Ion (Li-Ion)
  • Lithium-Ion Polymer (Li-Po)

SPECIFICATIONS

  • Input Voltage Range: 6V-32V
  • Output Voltage: 3-12V, automatically adjust according to the fast charge protocol (default output is 5V, input is 2V higher than output)
  • Output Current: 0-3A
  • Output Power: ≤24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
  • Chip Protection:
    • Ιnput over-voltage and under-voltage protection
    • Ιnput over-current protection
    • Οutput over-current and short-circuit protection
    • Whole machine over-temperature protection
  • Support Fast Charge Protocol:
    • Support DCP protocol, BC1.2, Apple, Samsung protocol
    • Support Huawei fast charge protocol FCP/SCP, AFC
    • Support Spreadtrum fast charge protocol SFCP
    • Support Qualcomm QC2.0 and 3.0
    • Support MTKPE1.1/PE2.0

FEATURES

  • 2-way USB port output
  • Support multiple fast charging protocols
  • Can be used as charging and power supply
