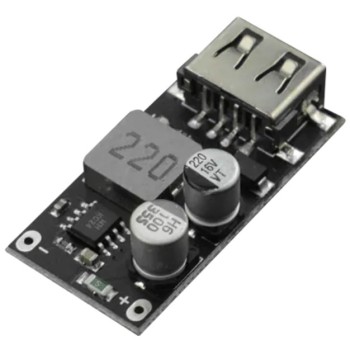

DFRobot DC-DC Fast Charge Module

by DFROBOT
This USB fast-charge module integrates the most common 5V charging recognition function and provides compatibility for more than 99% of mobile phones on...
25-00010801
Company: DFROBOT
Part Number: DFR0756
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
3.60
Without VAT 2.90
+
WISHLIST COMPARE

DESCRIPTION

This USB fast-charge module integrates the most common 5V charging recognition function and provides compatibility for more than 99% of mobile phones on the market. Compared with other products without a charge recognition function, the charging current in the peak of this module can be triggered by the charging protocol, which greatly saves charging time.

With steady output, this Fast Charge Module is able to work for a long time without voltage shift. It can be suitable for projects like mobile phone fast charging, Car charging retrofit, solar charger, DIY power source, etc.



NOTES

  • Compatible with Raspberry Pi 4B & Jetson Nano

SPECIFICATIONS

Input Voltage:
6-32Volt
Output Voltage:
3-12Volt
Output Current:
3Amp
Raspberry Compatible:
  • Model 4 B
Chemistry:
  • Lithium-Ion (Li-Ion)
  • Lithium-Ion Polymer (Li-Po)

SPECIFICATIONS

  • Input Voltage Range: 6V-32V
  • Output Voltage: 3-12V Auto-adjust based on the fast-charging protocol (Default output 5V, the input should be 2V higher than the output)
  • Output Current: 0-3A
  • Chip Protection: input overvoltage, under-voltage protection, input overcurrent protection, output overcurrent, short circuit protection, machine over-temperature protection
  • Supported Fast Charging Protocol:
    • DCP protocol, BC1.2, Apple, Samsung
    • Huawei fast charging protocol FCP/SCP
    • supports spreadtrum fast charge protocol SFCP
    • Qualcomm QC2.0 and 3.0
    • MTKPE1.1/PE2.0

FEATURES

  • Small in size
  • Support multiple fast-charging protocols
  • USB output
  • Can be used as a charging module or power supply
