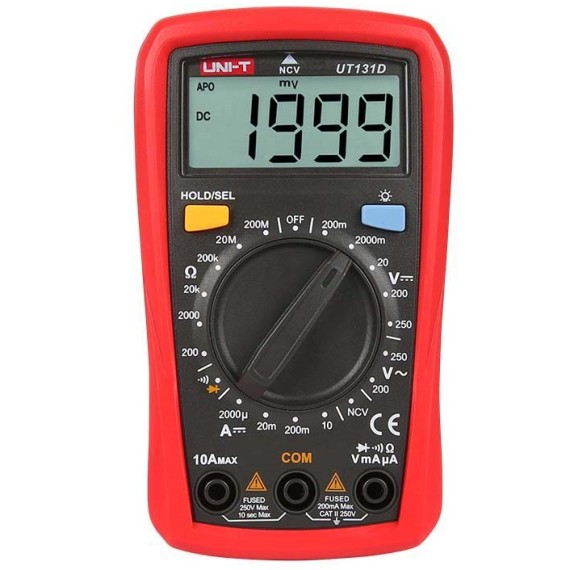

Digital Multimeter UNI-T UT131D

by UNI-T
New generation of multimeter UT131 series offers a greater measuring standar in the category of low cost multimeters. Innovative and industrial design...
24-00077482
Company: UNI-T
Part Number: UT131D
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
14.80
Without VAT 11.94
+
WISHLIST COMPARE

DESCRIPTION

New generation of multimeter UT131 series offers a greater measuring standar in the category of low cost multimeters. Innovative and industrial design ensures impact resistance of the multitemer from a two meter height. New layout of LCD display is both more comprehensive and practical for all users, and has a backlight option. Multimeters UT131 series ensure safe usage and measuring according to CAT II standard.

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • AC voltage
  • DC current
  • DC voltage
  • Resistance
Measuring instrument features: :
  • HOLD function
  • Diode test
  • Low battery Indicator
  • buzzer
  • polarization indicator
Type of display used:
LCD (2000), with a backlit
DC voltage measuring range:
200mV/2000mV/20V/200V/250V
DC voltage measuring accuracy:
±(0,5% + 2 digits)
AC voltage measuring range:
200V/250V
AC voltage measuring accuracy:
±(1,2% + 3 digits)
DC current measuring range:
2000μA/ 200mA/10A
DC current measuring accuracy:
±(1,0% + 2 digits)
Resistance measuring range:
200/2k/20k/200k/2M/20MΩ
Resistance measuring accuracy:
±(0,8% + 2 digits)
Continuity test:
Yes, Buzzer
Overall dimensions (W x D x H):
131 x 95 x 58mm
Weight with battery:
300gr
Power supply:
Battery AAA x2 (not included)
Standard equipment:
  • Test Leads
  • User's manual
