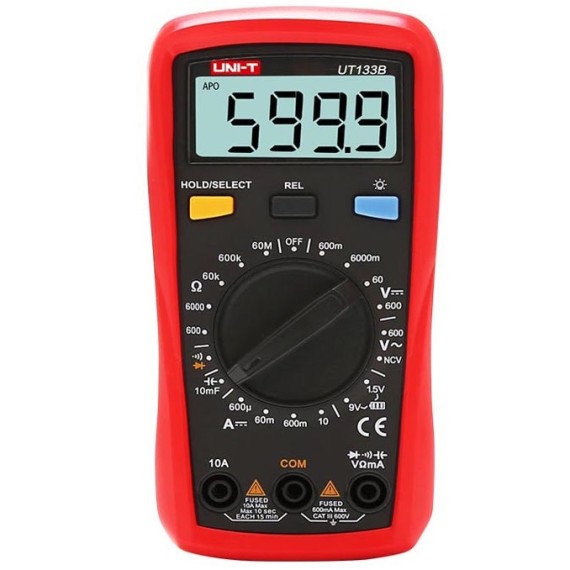

Digital Multimeter UNI-T UT133B

by UNI-T
UT133B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device...
24-00077485
Warranty: 2 Year Manufacturer Warranty
Company: UNI-T
Part Number: UT133B
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
19.90
Without VAT 16.05
+
WISHLIST COMPARE

DESCRIPTION

UT133B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • AC voltage
  • DC current
  • DC voltage
  • Resistance
  • Capacitance
Measuring instrument features: :
  • HOLD function
  • Auto Power-OFF
  • Diode test
  • Low battery Indicator
  • REL function
  • buzzer
Type of display used:
LCD (6000), with a backlit
DC voltage measuring range:
600mV/6000mV/60V/600V
DC voltage measuring accuracy:
±(0,5% + 3 digits)
AC voltage measuring range:
200/600V
AC voltage measuring accuracy:
±(1,2% + 3 digits)
DC current measuring range:
600μA/60mA/600mA/10A
DC current measuring accuracy:
±(1,0% + 2 digits)
Resistance measuring range:
600Ω/6000Ω/60kΩ/600kΩ/60MΩ
Resistance measuring accuracy:
±(0,8% + 2 digits)
Capacitance measuring range:
9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
Capacitance measuring accuracy:
±(4% + 5 digits)
Continuity test:
Yes, Buzzer
Overall dimensions (W x D x H):
155 x 76.5 x 49mm
Weight with battery:
255gr
Power supply:
Battery AAA x2 (not included)
Standard equipment:
  • Test Leads
  • User's manual
