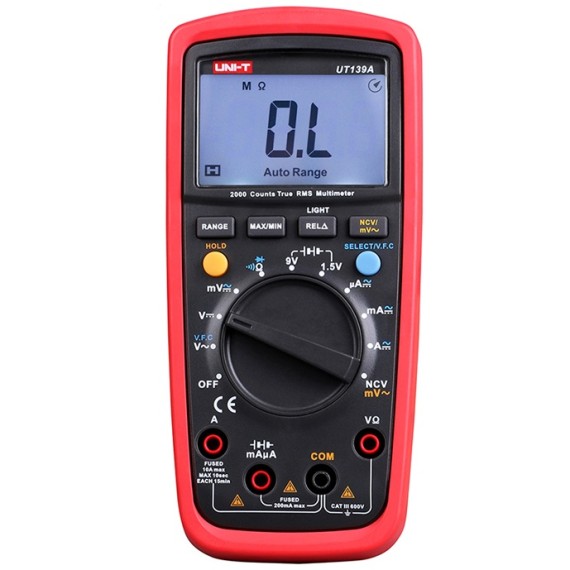

Digital Multimeter UT139A - UNI-T

by UNI-T
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM...
24-00077483
Warranty: 2 Year Manufacturer Warranty
Company: UNI-T
Part Number: UT139A
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
49.90
Without VAT 40.24
+
WISHLIST COMPARE

DESCRIPTION

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • AC current
  • AC voltage
  • DC current
  • DC voltage
  • Resistance
Measuring instrument features: :
  • HOLD function
  • Auto Power-OFF
  • Diode test
  • autoranging
Type of display used:
LCD (6000), with a backlit
DC voltage measuring range:
20mV/200mV/2V/20V/200V/600V
DC voltage measuring accuracy:
±(0,5% + 2 digits)
AC voltage measuring range:
20mV/200mV/2V/20V/200V/600V
AC voltage measuring accuracy:
±(1% + 3 digits)
True effective value measurement:
True RMS
DC current measuring range:
200µ/2m/20m/200m/10A
DC current measuring accuracy:
±(0,7%+2 digits)
AC current measuring range:
200μ/2000μ/20m/200m/2A/10A
AC current measuring accuracy:
±(1% + 3 digits)
Resistance measuring range:
200/2k/20k/200k/2M/20MΩ
Resistance measuring accuracy:
±(1% + 2 digits)
Continuity test:
Yes, Buzzer
Overall dimensions (W x D x H):
180 x 87 x 47mm
Power supply:
Battery AA x2
Standard equipment:
  • Test Leads
  • User's manual
