EL Wire Inverter - 12v

από OEM
Ever heard of EL wire? Check the wiki page:  Electrolimunescent wire , sometime we called it the cool light. EL wire is a flexible wire coated in...
39-00013217
Ογκομετρικό βάρος: 0.03kg
Κατασκευαστής: OEM
Part Number: HR0391
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+ 1000+
Τιμή 3.84 3.36 2.88

ΠΕΡΙΓΡΑΦΗ

Ever heard of EL wire? Check the wiki page: Electrolimunescent wire, sometime we called it the cool light.

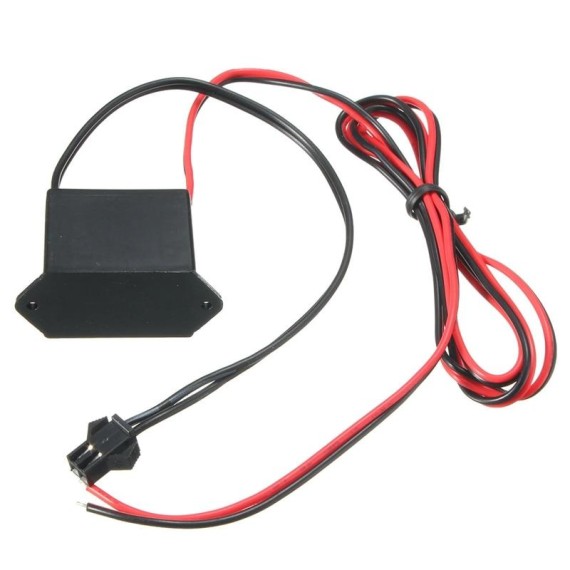

EL wire is a flexible wire coated in phosphor. Yes, it will iluminate light when appropiate AC (Alternate Current) power is applied to it. Yup, is AC, not DC. It looks a lot like a thin flexible neon tube. They come in many bright colors, we are now carry orange, white, blue, red, green, yellow and purple. So what is this inverter? This inverter is the device need to drive the EL wire!

As stated, it require AC, but not our house AC power. Please do not try using our house AC 240V 50Hz to power this EL wire. Use this inverter to drive it, this inverter take 12V DC input and invert it to appropiate AC at around 90V at 2KHz. It is designed to drive EL wire only. It is capable to drive up to 5 meters of EL wire.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
OEM
Part Number:
HR0391
Καθαρό Βάρος:
0.03kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Input Voltage: 12V DC
  • Input Wire polarity:
    • Black = GND
    • Red = +12VDC
  • Output Voltage: ~ 90VAC, 2KHz
  • Length of EL wire: Up to 5 meters
  • Operation: Always activate once 12VDC is apply
  • Output Wire: Terminated with 2 pin connector, direct plug to EL wire
  • Main Material: Plastic
  • Color: Black
  • Dimension: 38x22x18mm.
