Ethernet & USB HUB Box for Raspberry Pi Zero

από WAVESHARE
The  ETH-USB-HUB-BOX  is a HUB kit with  ETH/USB HUB HAT (B)  inside. It is tailored for  Raspberry Pi Zero series , small in size, each cut-out of the...
31-00020894
Ογκομετρικό βάρος: 0.05kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: ETH-USB-HUB-BOX
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 17.91

ΠΕΡΙΓΡΑΦΗ

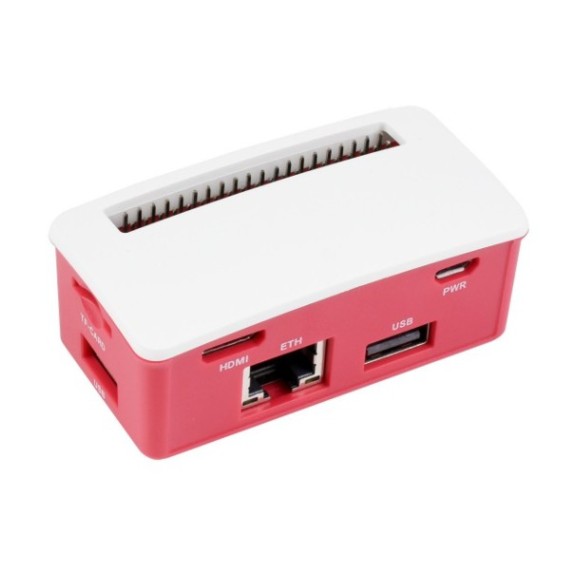

The ETH-USB-HUB-BOX is a HUB kit with ETH/USB HUB HAT (B) inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This HUB BOX will provide RJ45 Ethernet port and more USB capability for your Zero, make it easy to connect the Internet and sorts of USB devices.

Compatible With Raspberry Pi Series
Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. ETH/USB HUB HAT (B) x1
  2. ABS case x1
  3. Rubber feet 4PCS x1
  4. Screws pack x1
  5. Screwdriver x1

Extended Ports
1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

Two Different Lids, Changing As You Like
"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs

Application Example

ΣΗΜΕΙΩΣΕΙΣ

  • Raspberry Pi Zero is NOT included.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Ethernet
  • USB
Κατασκευαστής
:
WAVESHARE
Part Number:
ETH-USB-HUB-BOX
Μικτό Βάρος:
0.05kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Designed for Raspberry Pi Zero, compatible with Zero series boards
  • 3x extended USB ports, compatible with USB 2.0 / 1.1
  • Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
  • Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
  • Angle rounded design, smooth hand feeling, "simple snap" case lid
  • Quality ABS material, dull polish surface, anti-fingerprint
  • Comes with two different lids, changing as you like
