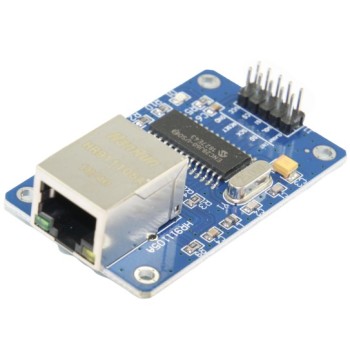

Ethernet LAN / Network Module - ENC28J60

by OEM
ENC28J60 Ethernet LAN / Network Module perfectly suited to you Arduino / PIC projects. ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60...
39-00012991
Gross Weight: 0kg
Company: OEM
Part Number: HR0214-12
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
6.80
Without VAT 5.48
+
WISHLIST COMPARE

DESCRIPTION

ENC28J60 Ethernet LAN / Network Module perfectly suited to you Arduino / PIC projects.

ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. This Ethernet LAN module connects directly to most microcontrollers.

SPECIFICATIONS

  • Ethernet LAN Module for Arduino/AVR/LPC/STM3
  • ENC28J60 Ethernet chips
  • Can be easily mounted with the MCU
  • Network Interface: HR911105A
  • Supply Voltage: 3.3 V (5V Tolerant DIO)
  • 25Mhz crystal oscillator
  • Dimensions: 58x34x17mm
PINOUT
PIN DESCRIPTION
1 CLK OUT
2 INT
3 WOL
4 SO
5 SI
6 SCK
7 CS
8 RES
9 +3.3V
10 GND
