Gravity Analog AC Current Sensor (20A)

by DFROBOT
When you want to measure the AC current, are you still having trouble cutting the wires, wiring, or soldering. Gravity: Analog AC Current Sensor comes to...
25-00016110
Company: DFROBOT
Part Number: SEN0211
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
No stock in retail store
24.90
Without VAT 20.08
+
WISHLIST COMPARE

DESCRIPTION

When you want to measure the AC current, are you still having trouble cutting the wires, wiring, or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits.

Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value.

The analog output is designed to be compatible with 3V3/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.

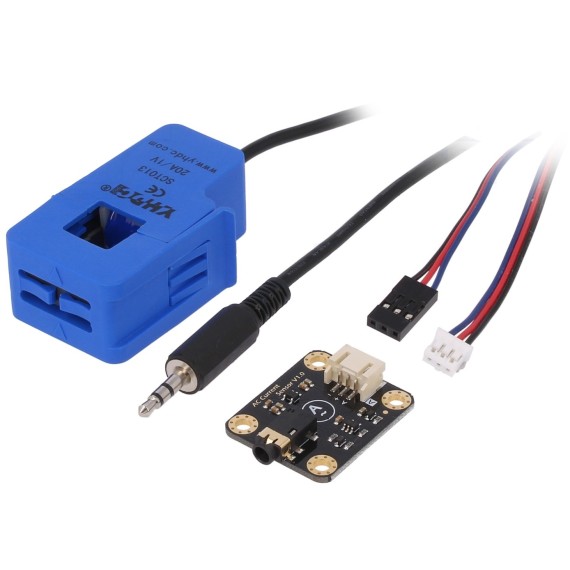

THE PACKAGE INCLUDES

  • 1x AC Current Signal Conversion Module
  • 1x Open Type AC Transformer Probe (20A)
  • 1x Gravity-3P Analog Sensor Cable

Gravity: Analog AC Current Sensor connection diagram (Arduino UNO)

Measure and display household appliances AC current

SPECIFICATIONS

Sensor Type:
  • Current
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

AC Current Signal Conversion Module
  • Input Voltage (VCC): 3.3V-5.5V
  • Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.2-2.8V DC)
  • AC Voltage Input Range: 0-1V (AC RMS)
  • Relative Error: ±4%
  • Dimension: 32×27 mm /1.26×1.06 in
  • Weight: 5g

Open Type AC Transformer Probe

  • AC Current Range: 0-20A
  • Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-20A
  • Accuracy: ±1%
  • Non-linearity: ≤±0.2%
  • Frequency Range: 50Hz~1kHz
  • Cable Length: 1m
  • Working Temperature: -25 ℃~+70 ℃
  • Opening Size: 13×13 mm / 0.51×0.51 in
  • Weight: 50g

FEATURES

  • Non-contact measurement, high safety
  • Multiple ranges for various measurement scenarios
  • Compatible with 3V3/5V micro-controller
  • Application
    • AC motor automatic monitoring
    • Lighting and electrical equipment measurement
