Gravity Analog High Temperature Sensor (30~350°C)

από DFROBOT
What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensor first, but this sensor is only...
25-00016212
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0198
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
17.30
Χωρίς ΦΠΑ 13.95
+

ΠΕΡΙΓΡΑΦΗ

What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensor first, but this sensor is only capable of measuring temperatures up to 125°C. In order to measure temperatures greater than 100°C you will need something with a greater temperature range and resistance.

This is the sensor you need! We have used a PT100 resistance-type high-temperature probe which is often used in industrial applications. Using this probe you can measure a temperature range between 30-350°C. The module itself is compatible 3.3V-5.5V supply, so Arduino, STM32, and other microcontrollers are compatible.

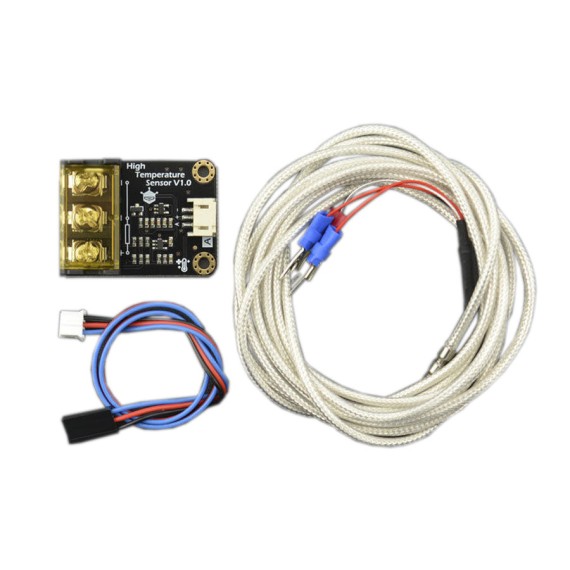

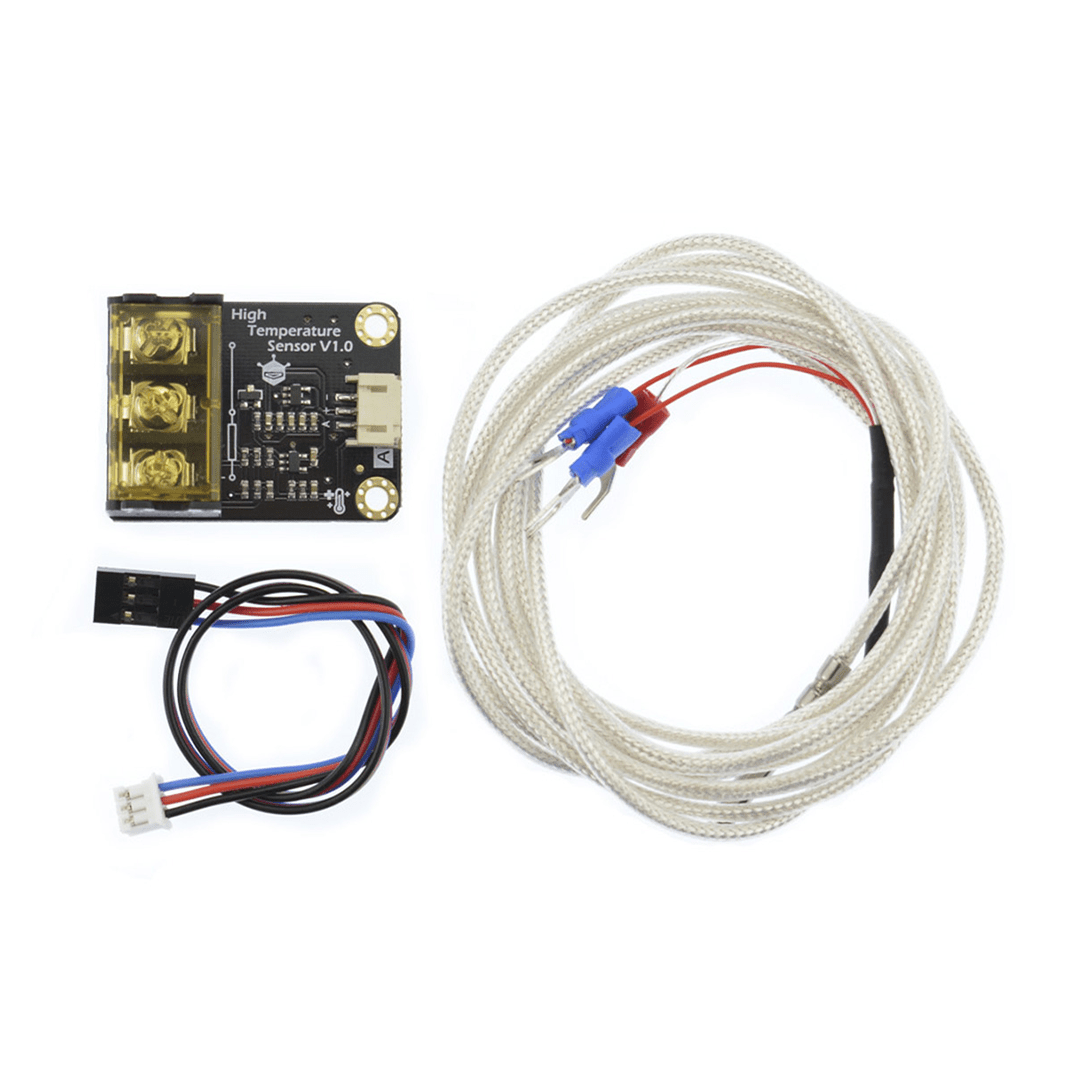

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Analog High-Temperature Sensor Module
  • 1x PT100 Probe
  • 1x Analog Sensor Cable

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0198
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Θερμοκρασίας
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Module
    • Operating voltage: 3.3V-5.5V
    • Analog output voltage: 0.2V-2.8V
    • Working temperature range: 30-350°C
    • Relative Error: ±2% F.S.
    • Interface: PH2.0-3P
    • Size: 42x32x18mm
    • Waterproof: No
  • PT100 Probe
    • Probe Working temperature: -20-400°C
    • Sheathing Tolerance: up to 200
    • Length: 2m
    • Precision: 0.5C
    • Waterproof: Yes

ΔΥΝΑΤΟΤΗΤΕΣ

  • Supports 3-Pin "Gravity"
  • Interface analog output
