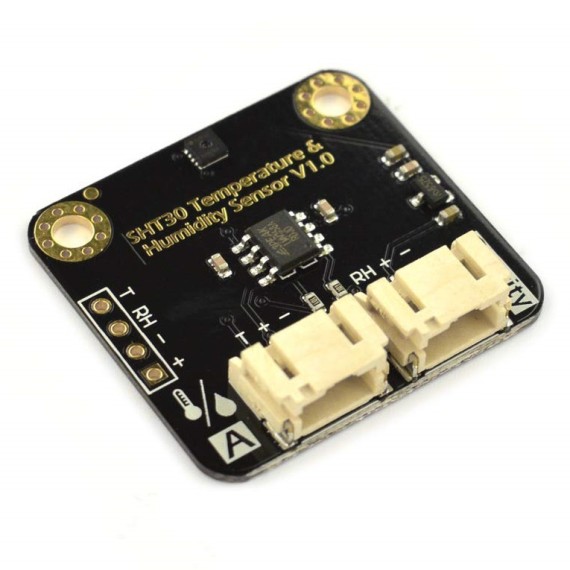

Gravity Analog Temperature & Humidity Sensor - SHT30

by DFROBOT
Gravity: Analog SHT30 Temperature & Humidity  Sensor  adopts the new generation SHT30 temperature and humidity sensor from Sensirion. Thanks to...
25-00016122
Company: DFROBOT
Part Number: DFR0588
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
8.60
Without VAT 6.94
+
WISHLIST COMPARE

DESCRIPTION

Gravity: Analog SHT30 Temperature & Humidity Sensor adopts the new generation SHT30 temperature and humidity sensor from Sensirion.

Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and immunity to interference. The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity.

It is compatible with 3.3V/5V controllers such as Arduino, micro:bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1xGravity: Analog SHT30 Temperature & Humidity Sensor
  • 1x XH2.54-4P Black Header
  • 2x Gravity-3P Analog Sensor Cable

Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (Arduino UNO)



SPECIFICATIONS

Sensor Type:
  • Humidity
  • Temperature
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
0.5mA
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

  • IC (Sensor): Sensirion SHT30
  • Input Voltage (VCC) : 3.3-5.5V
  • Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.3-2.7V)
  • Quiescent Current: <0.5 mA
  • Dimension: 30x32mm
  • Weight: 3g
  • Temperature Performance
    • Range: -40-125℃
    • Resolution: 0.01℃, 14bit
    • Accuracy: ±0.2℃@10-55℃ (typical), ±1.5℃@-40 ~ 125 ℃ (typical)
    • Response Time: >2s
  • Humidity Performance
    • Range: 0 - 100 %RH
    • Resolution: 0.006 %, 14bit
    • Accuracy: ±3 %RH@10~90 %RH (typical),±8 %RH@0~100 %RH (typical)
    • Response Time: >8s

FEATURES

  • Internal auto-calibration, linear analog voltage output
  • High precision, low power consumption, fast response
  • Compatible with 3.3V/5V controller
  • Applications
    • Urban Environmental Monitoring
    • Intelligent Building, Home
    • Industrial Automation
