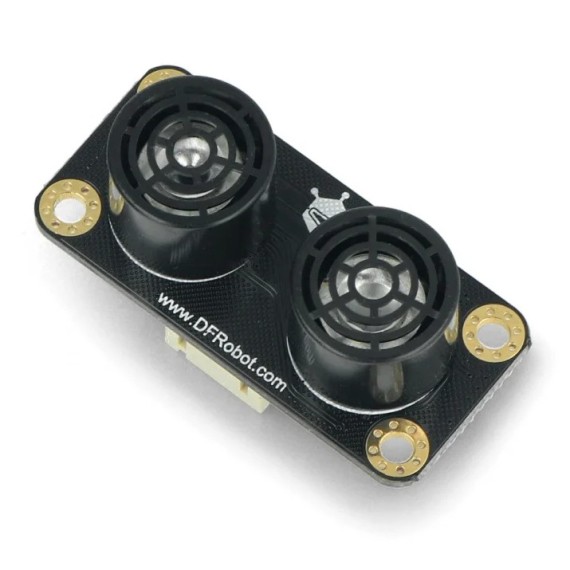

Gravity Analog Ultrasonic Sensor - URM09

by DFROBOT
What is an Ultrasonic Sensor? An Ultrasonic sensor is a device that can measure the distance to an object by using sound waves. It measures distance by...
25-00016121
Company: DFROBOT
Part Number: SEN0307
Made in: China
Out of Stock
Product out of stock
No stock in retail store
9.90
Without VAT 7.98

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

What is an Ultrasonic Sensor?
An Ultrasonic sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back.

Since it is known that sound travels through air at about 344 m/s (1129 ft/s), you can take the time for the sound wave to return and multiply it by 344 meters (or 1129 feet) to find the total round-trip distance of the sound wave. Round-trip means that the sound wave traveled 2 times the distance to the object before it was detected by the sensor; it includes the 'trip' from the sonar sensor to the object AND the 'trip' from the object to the Ultrasonic sensor (after the sound wave bounced off the object). To find the distance to the object, simply divide the round-trip distance in half.

DFRobot URM09 is an ultrasonic sensor specially designed for fast ranging and obstacle avoidance applications. Its measuring frequency can reach up to 30Hz. The sensor adopts built-in temperature compensation and analog output. Meanwhile, it can provide accurate distance measurement within 500cm. The sensor is compatible with Arduino, Raspberry Pi or other main-control boards with 3.3V or 5V logic level.

THE PACKAGE INCLUDES

  • 1x URM09 Ultrasonic Sensor (Gravity Analog)
  • 1x PH2.0-3P Connector

Diagram of the basic ultrasonic sensor operation

SPECIFICATIONS

Sensor Type:
  • Proximity
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
20mA
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

  • Power Supply: 3.3-5.5V DC
  • Operating Current: 20mA
  • Operating Temperature: -10℃~+70℃
  • Measurement Range: 2cm - 500cm
  • Resolution: 1cm
  • Accuracy: 1%
  • Frequency: 30Hz Max
  • Dimension: 47x22mm
