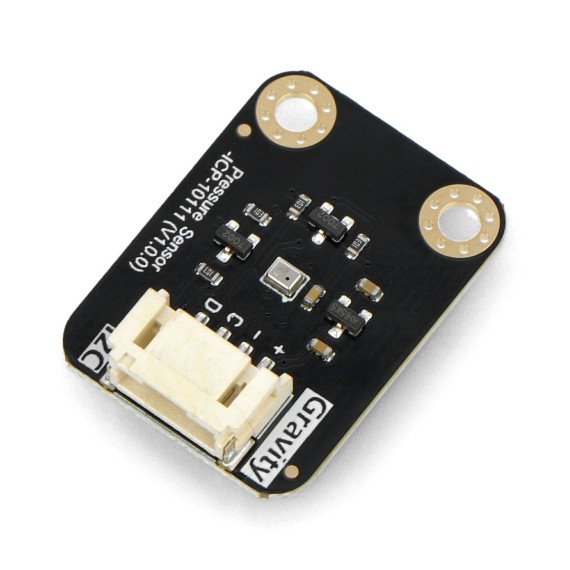

Gravity ICP-10111 Pressure Sensor

από DFROBOT
This barometric pressure temperature sensor is equipped with TDK's newly-launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor...
25-00016206
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0517
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
Από 12.40
9.92
Χωρίς ΦΠΑ 8.00
Κέρδος: 2.48 (20%)
Σε Προσφορά
+

ΠΕΡΙΓΡΑΦΗ

This barometric pressure temperature sensor is equipped with TDK's newly-launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy, and temperature offset coefficient.

The Gravity: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.

The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation, and altitude-hold in drones.

Board Overview

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0517
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Βαρομετρικής Πίεσης
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
2mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Working Voltage: 3.3V~5.5V
  • Working Current: <2mA
  • Communication: I2C
  • I2C Address: 0x63
  • Barometric Pressure Measurement Range: 30~110kPa
  • Relative Barometric Pressure Measurement Accuracy: ±0.01 hPa (950hPa~1050hPa, 25℃)
  • Absolute Barometric Pressure Measurement Accuracy: ±1 hPa (950hPa-1050hPa, 0℃~65℃)
  • Temperature Coefficient Offset: ±0.5 Pa/℃ (100kPa, 25℃~45℃)
  • Absolute Temperature Measurement Accuracy: ±0.4℃
  • Working Temperature: -40℃~85℃
  • Dimensions: 30x22mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
  • ±0.5Pa/℃ temperature coefficient offset, high stability for long-term use
  • 0.4Pa Pressure noise, more stable data

Applications

  • UAV height control
  • Indoor navigation and positioning
  • Vertical speed measurement
  • Enhancing reality and virtual display applications
