Gravity: Infrared Light Photo Interrupter Module

από DFROBOT
The Gravity: Photo Interrupter Module integrates a high-performance ITR9608 photoelectric switch. Its compact design and easy operation make it an ideal...
25-00016979
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR1129
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
3.60
Χωρίς ΦΠΑ 2.90
+

ΠΕΡΙΓΡΑΦΗ

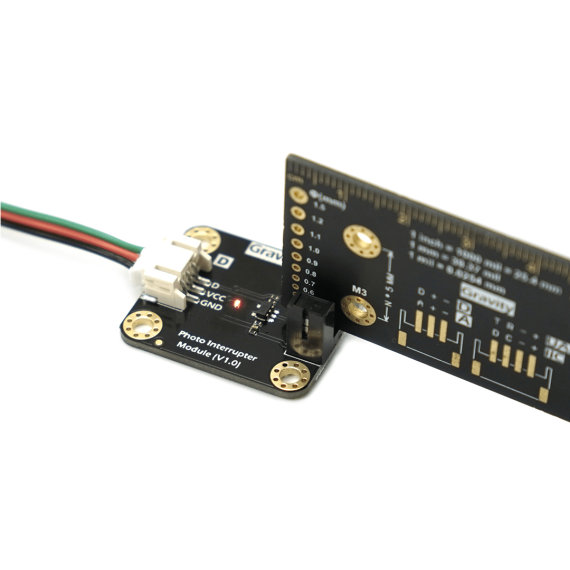

The Gravity: Photo Interrupter Module integrates a high-performance ITR9608 photoelectric switch. Its compact design and easy operation make it an ideal choice for electronic projects and applications. Whether for robotics, automation equipment, or counting systems, this module provides precise photoelectric detection and efficient signal processing.

What is the photo interrupter?

The photo interrupter is a device that operates by blocking light with an object. Its main components include a light emitter and a light receiver, both arranged face-to-face within the same enclosure. When an object passes through the light path between the emitter and receiver, the light at the receiver is obstructed, triggering the operation of the photoelectric sensor.

FEATURES

  • High Sensitivity and Precision: Utilizing the ITR9608 slotted photoelectric switch.
  • Wide Photonic Gap: With a 5.0mm wide photonic gap design, it is suitable for detecting objects of various sizes.
  • Simple and Easy to Use: Designed with a standard Gravity interface, it offers easy operation and strong compatibility, making connections hassle-free.
  • Strong Compatibility: Arduino, micro: bit, and UNIHIKER

APPLICATIONS

  • Counter: Facilitates object counting on production lines.
  • Speed Detection and Measurement: Provides pulse signals for calculating rotation speed and frequency.
  • Smart Card Switch: Detects card insertion and removal for power control.
  • Printer and Copier Paper Detection: Controls printing and transmission by detecting paper position.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR1129
Μικτό Βάρος:
0.01kg
Τύπος Αισθητήρα:
  • Απεικόνισης
  • Υπερύθρων
Τυπική Τάση Εισόδου:
  • 3.3-5VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

SPECIFICATION

  • Operating Voltage: 3.3~5V
  • Output Type: Digital Signal
  • Light Source Wavelength: 940nm (Infrared)
  • Photonic Gap: 5.0mm
  • Interface Type: PH2.0-3P
  • Product Dimensions: 27x32mm
  • Product Weight: 4.0g (total weight including packaging and sensor wire is 12g)

In the Box

  • Gravity: Photo Interrupter Module x1
  • Gravity: Digital Sensor Cable for Arduino - 30cm x1
