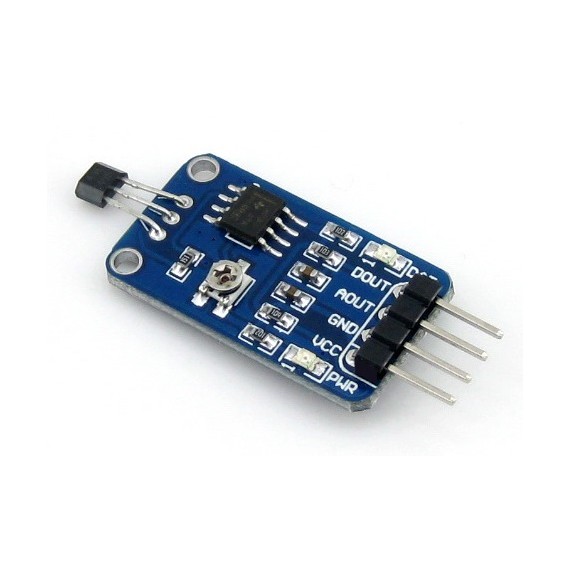

Hall Sensor Board

31-00009522
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
3.50
Without VAT 2.82
+
WISHLIST COMPARE

SPECIFICATIONS

Sensor Type:
  • Hall Effect
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
10mA
Interface:
  • Analog
  • Digital
Communication Protocol:
  • Without

EXTRA SPECIFICATIONS

  • 49E hall sensor
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator
  • Power: 2.3V ~ 5.3V


FEATURES

  • Motor speed measurement
  • Object position detection
  • Smart car
  • Electronic bricks

Dimensions

  • 27 x 15.5mm
  • Mounting holes size: 2.0mm

Connection

In the case of working with a MCU:

  • VCC ↔ 2.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
