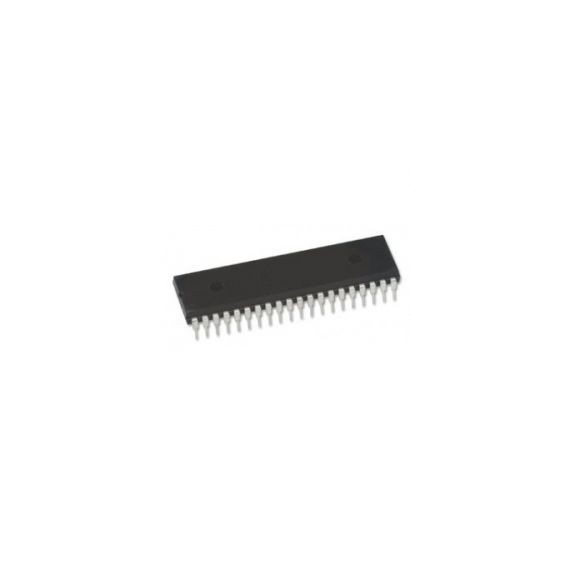

ICL7106 A/D Converter - LCD Display Driver

in category Display Drivers

The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display.

05-00071069
In Stock
Ships in 24 Hours
Low stock in store
8.60
Without VAT 6.94
+
WISHLIST COMPARE

DESCRIPTION

The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display.

Specifications:
  • Resolution (Digits): 3.5
  • Typ. Conversion Rate: 3
  • Conversion Type: Integrating
  • VIN (V): 0 to 0.2 or 2
  • Technology: CMOS
  • VS: 9 V
  • VREF: Int/Ext
