Industrial Isolated Multi-Bus Converter USB/RS232/RS485/TTL

από Waveshare
Ο μετατροπέας USB/RS232/RS485/TTL είναι ένας απομονωμένος μετατροπέας βιομηχανικής ποιότητας που υποστηρίζει USB / RS232 / TTL σε RS232 / 485 / TTL, με ενσωματωμένη απομόνωση τροφοδοτικού, ψηφιακή απομόνωση και κυκλώματα προστασίας, όπως δίοδο TVS. Είναι εύκολο στη χρήση και κατάλληλο για βιομηχανικούς εξοπλισμούς ελέγχου ή/και εφαρμογές με υψηλές απαιτήσεις επικοινωνίας.
31-00021411
Ογκομετρικό βάρος: 0.24kg
Κατασκευαστής: Waveshare
Part Number: 21411
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
29.90
Χωρίς ΦΠΑ 24.11
+

ΠΕΡΙΓΡΑΦΗ

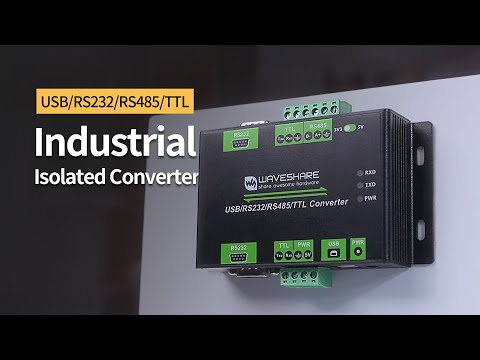

Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication

Industrial Isolated Multi-Bus Converter
Communication between different buses

The USB/RS232/RS485/TTL Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement.

  • Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility
  • Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)
  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal
  • Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Multibus Converter x1
  2. USB cable (~1.2m) x1
12




ΣΗΜΕΙΩΣΕΙΣ

  • Only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time.

Interface Introduction

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Oxidation Dull-Polish Surface,
Solid And Durable, Nice Looking

Pinout Definition



ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
Waveshare
Part Number:
21411
Καθαρό Βάρος:
0.24kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Data Rate:
    • 300 ~ 921600bps
    • 300 ~ 600000bps (RS232 to RS232)
  • GROUP A:
    • USB:
      • Operating voltage: 5V
      • Connector: USB-B
      • Protection: 200mA resettable fuse, isolated output
    • RS232:
      • Connector: DB9 male
      • Protection: TVS protection, surge-suppress, ESD protection
      • Transmission mode: point-to-point
    • TTL (UART)
      • Operating voltage: 5V
      • Connector: Screw terminal
      • Pinout: TXD, RXD, GND, 5V
      • Protection: clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof
  • GROUP B:
    • RS485:
      • Connector: screw terminal
      • Pinout: A+, B-, GND
      • Direction control: hardware auto control
      • Protection: lightningproof, surge-suppress, ESD protection
      • Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
    • RS232:
      • Connector: DB9 male
      • Protection: TVS protection, surge-suppress, ESD protection
      • Transmission mode: point-to-point
    • TTL (UART):
      • Operating voltage: 3.3/5V
      • Connector: screw terminal
      • Pinout: TXD, RXD, GND
      • Protection: clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof



  • Operating Environment:
    • Temperature -25℃ ~ 85℃
    • Humidity 5%RH ~ 95%RH
  • OS Support: Windows 11 / 10 / 8.1 / 8 / 7 / XP

ΔΥΝΑΤΟΤΗΤΕΣ

Multi-Protocol Multi-Bus Conversion

Transmitting data from Group A terminals to Group B

Transmitting data from Group B terminals to Group A

  • Terminals in the same group cannot communicate with each other.
  • Terminals in the same group cannot send data at the same time, while concurrently receiving is allowed.

Operating Status Indicators

3x LED Indicators For Easily Checking Power Connection And Signal TX/RX Statuses
