IO Extender for micro:bit & UNIHIKER

από DFROBOT
This IO Extender is an easy-to-use and low-cost expansion board for micro:bit. It leads out all IO ports of   micro:bit and has a specially-designed port...
25-00016353
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: MBT0008
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.60
Χωρίς ΦΠΑ 6.13
+

ΠΕΡΙΓΡΑΦΗ

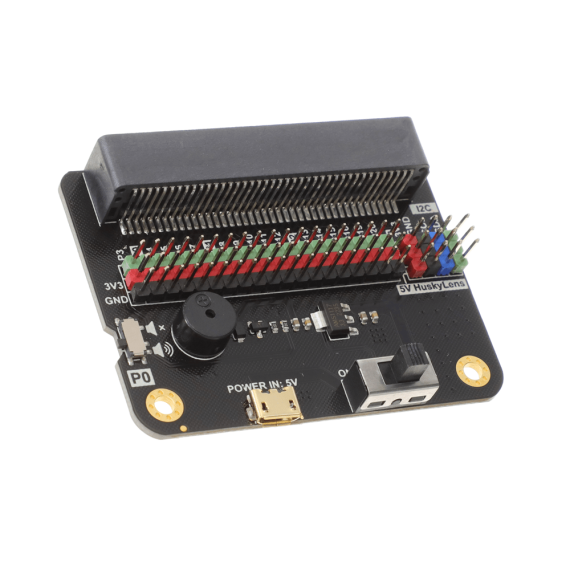

This IO Extender is an easy-to-use and low-cost expansion board for micro:bit. It leads out all IO ports of micro:bit and has a specially-designed port for “HuskyLens AI camera”. This board can be used to provide stable 5V power supply for HuskyLens to make it run steadily in all modes.

The silkscreens on the back clearly indicate the functions of all interfaces, which can help users to get started easily.



ΣΗΜΕΙΩΣΕΙΣ

  • Please supply power via the USB port on this product when using with HuskyLens.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Συμβατό Micro:bit:
  • V2
Κατασκευαστής
:
DFROBOT
Part Number:
MBT0008
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power: 5V MicroUSB
  • GPIOs(3.3V): P3 P0 P4 P5 P6 P7 P1 P8 P9 P10 P11 P12 P13 P14 P15 P16 P19 P20
  • I2C Ports(3.3V) x2
  • HuskyLens-I2C Port(5V) x1
  • Buzzer x1
  • Dimension: 66.0x50.5mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Rich ports, lead out all micro:bit pins in Gravity standard, 2-way I2C port.
  • Specially-designed I2C port for HuskyLens.
  • Clear silkscreen on the back, easy to get started.
