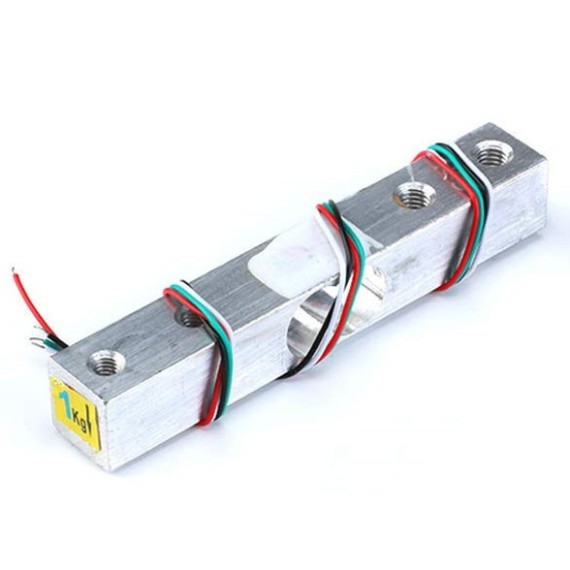

Load Cell - 1kg

by OEM
This load cell (sometimes called a strain gauge) can translate up to 1kg of pressure (force) into an electrical signal. Each load cell is able to measure...
39-00013236
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
4.80
Without VAT 3.87
+
WISHLIST COMPARE

DESCRIPTION

This load cell (sometimes called a strain gauge) can translate up to 1kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each load cell is made from an aluminum-alloy and is capable of reading a capacity of 1kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation.

NOTES

  • The color code on the wiring is as follows: red = E+, white = O+, black = E-, and green = O-.

SPECIFICATIONS

Sensor Type:
  • Force
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

  • Dimensions: 80.3x12.6x12.6mm
