LoRa Module 433Mhz - SX1278

από OEM

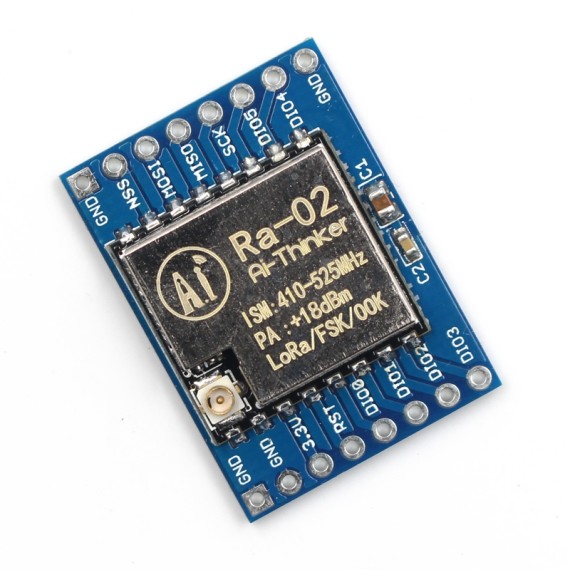

Το Ra-02 είναι μια μονάδα ασύρματης μετάδοσης που βασίζεται στον ασύρματο πομποδέκτη της SEMTECH SX1278. Υιοθετεί προηγμένη τεχνολογία φάσματος LoRa, με απόσταση επικοινωνίας 10.000 μέτρων.
39-00013247
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 7.92

ΠΕΡΙΓΡΑΦΗ

Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. The SX1278 RF module is mainly used for long-range spread spectrum communication, and it can resist Minimize current consumption. The SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, and a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.

It can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

ΣΗΜΕΙΩΣΕΙΣ

  • Τhe antenna is not included.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Communication distance: 15KM
  • Sensitivity: down to -148dBm
  • Programmable bit rates: up to 300kbps
  • RSSI dynamic range: 127dB
  • Wireless frequency: 433MHz
  • Working voltage: 1.8 - 3.7v
  • Working temperature: -40 - 80℃
  • Dimensions: 28x20.3x5mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • LoRa ™ Spread Spectrum modulation technology
  • Constant RF power output at + 20dBm-100mW voltage change
  • Half-duplex SPI communication
  • Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
  • Automatic RF signal detection, CAD mode and very high speed AFC
  • Packet engine with CRC up to 256 bytes
  • Small footprint dual-row stamp-hole patch package
  • Shielded housing
  • Spring Antenna
