Maqueen Lite & Micro:Bit GO Bundle

Κωδικός:

01-00012401

ΚατασκευαστήςGrobotronics

Εξαντλημένο

€64⁹⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

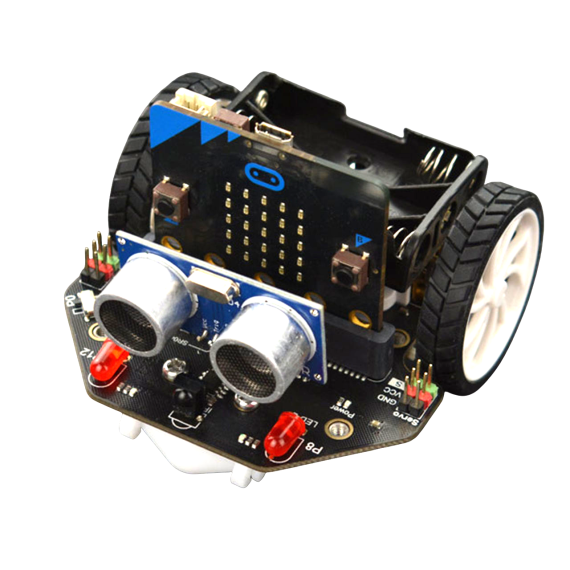

Hello, my name is Maqueen, is a graphical programming robot for STEM education, which inherits playability and simple operation of micro:bit. The Mini-body, interesting features and plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children's interest in science and logical thinking.

Maqueen is accessible to Mind+ Programming platform now. Mind+ is a Scratch3.0-based graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

Car Body x1
- Motors and bearing wheel have been assembled before leaving factory
Wheel x2
Three AAA batteries Box x1
Double Sided Adhesive Tape x1
Micro:Bit Go Bundle

ΣΗΜΕΙΩΣΕΙΣ

Suggest Age: 8+
batteries are not included.
Ειδοποίηση αλλαγών σχεδίου

Supply Voltage: 3.5V - 5V DC
- Three AAA batteries or 3.6V~3.7V lithium battery
Infrared Grayscale Sensor(High-low level) x 2
Buzzer x1
Infrared Receiver (NEC decoder) x1
LED Lights (High-low level control) x2
RGB Ambient Light (16 million colors) x4
SR04, SR04P Ultrasonic Interface(5V) x1
IIC Interface (3.3V) x1
Servo Interface (S1 S2) x2
Gravity Extension Interfaces (P1, P2) x2
N20 All-metal Gear Motor x2
Motor Reduction Ratio: 1:75
Maximum Rotate Speed: 266 rpm
Motor Drive Mode: PWM motor drive
Bracket and Protective Cover Extension M3 Screw Hole x 6
Programming Method:
- Makecode graphical programming
- Mind graphical programming (based on Scratch 3.0)
Dimension: 81 x 85 x 44mm
Weight: 75.55g

Support for Makecode, will support Scratch and python later.
Small size.
Flexible movement.
All-metal miniature gear motor, good quality, strong driving force.
Full-featured, highly expandable:
- Line patrol
- Ambient light
- LED lights
- Ultrasonic interface
- Servo interface
- Buzzer
- I2C interface
- Mechanical expansion screw hole
Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
Easy to install, easy to use.
