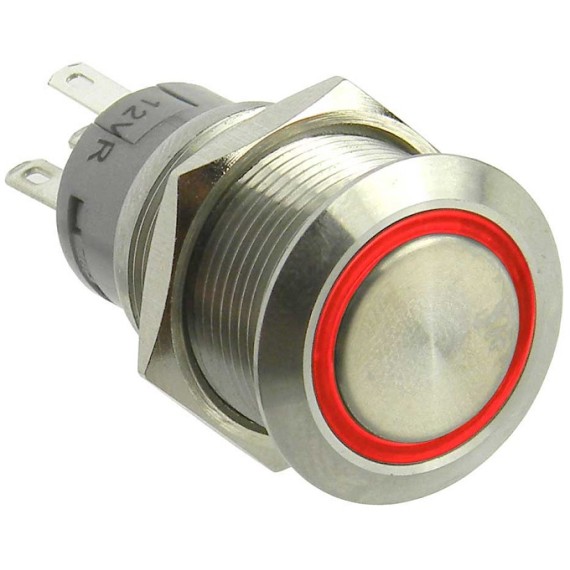

Metal Pushbutton - Momentary (19mm, Red)

από OEM
This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount switch with an...
29-00021931
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: IB19E-P11F-ER12V/S
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
6.90
Χωρίς ΦΠΑ 5.56
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 5.52 4.83

ΠΕΡΙΓΡΑΦΗ

This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated white LED ring. It is a SPDT with 19mm threading and 1mm pitch.  This button is perfect for basic On/Off functions. These buttons are rated up to 3A and 250VAC while the LED is rated for 12V.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
IB19E-P11F-ER12V/S
Μικτό Βάρος:
0.016kg
Χώρα Προέλευσης:
Κίνα
Διαμόρφωση Επαφών
:
  • SPDT
Μέθοδος Εναλλαγής
:
ON-(ON)
DC or AC Rating:
3A / 250VAC
Επαφές για:
Soldering

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Switch type vandal resistant
  • Stable positions number: 1-position
  • Contacts configuration: SPDT
  • AC contacts rating (at resistance load): 3 A / 220 VAC
  • Minimum Applicable Load: 5V AC/DC,1mA
  • Sealing: IP67
  • Switching method: ON-(ON)
  • Backlight colour: Red
  • Leads for soldering
  • Operating temperature: -20...55°C
  • Electrical life: 50000cycles
  • Switching torque: 4N
  • Mechanical durability: 200000cycles
  • Illumination: LED 12V AC/DC, ring
  • Body colour: Silver
  • Body material: Stainless steel
  • Contact material: Gold Plated
  • Dimensions:
    • Overall length: 35.5mm
    • Mounting hole diameter: Ø19mm
    • Button: 16mm
