MI:power board for the BBC micro:bit V2

The MI:power board for the BBC micro:bit brings real portability to your wearable projects. The stylish, lightweight PCB is designed to fit snugly against...
83-00005704
Company: Kitronik
Part Number: 5610-V2
Made in: UK
In Stock
Ships in 24 Hours
No stock in retail store
5.90
Without VAT 4.76
+
WISHLIST COMPARE

DESCRIPTION

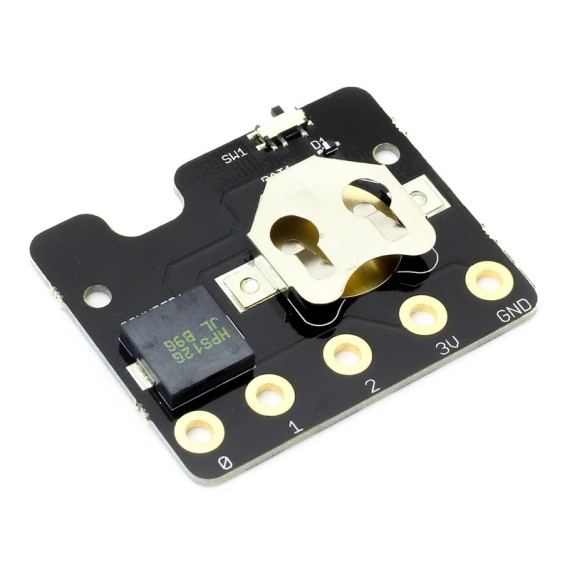

The MI:power board for the BBC micro:bit brings real portability to your wearable projects. The stylish, lightweight PCB is designed to fit snugly against the BBC micro:bit and features a built-in buzzer and 3V coin cell holder. This latest version has been redesigned to fit both the the V1 and V2 micro:bit.

When assembled, the MI:power board is connected directly to the 3V, GND and P0 connections on the micro:bit. The 3V and GND connections provide power to the micro:bit and the built-in buzzer is connected to P0, which is the default output pin when using the audio functions in the Block Editor software.

The board has an easy to access on/off switch, which makes it easy to turn a project on and off, rather than have to disconnect the power supply from the BBC micro:bit.

Once the unit is assembled and attached to the BBC micro:bit the mechanical fixings prevent the battery from being removed unless you use a screwdriver, so whatever the use, the battery will remain safely in place.

THE PACKAGE INCLUDES

  • 1x MI:power board for the BBC micro:bit.
  • 3x Counter Sunk M3 Machine Screws.
  • 3x M3 Hex Full Width Nuts.
  • 3x Plastic Spacers.
  • 1x CR2032 3V Coin Cell.



NOTES

  • Spacers, fixings and a battery are all provided.
  • BBC micro:bit is NOT included, they are available separately here.
  • This accessory requires some mechanical assembly.
  • No Soldering required.
  • Works with micro:bit V1 and micro:bit V2.

Requires:

SPECIFICATIONS

Micro:bit Compatible:
  • V1
  • V2

SPECIFICATIONS

  • Power your BBC micro:bit from a stylish PCB.
  • Break free from the tether to the computer and take your project mobile.
  • On-Board buzzer.
  • Easy access on/off switch.
  • Great for micro:bit mood badges, to allow your micro:bit to become a handheld remote control, and much more.
  • This accessory is supplied with spacers, fixings and a battery.
  • No soldering required.
  • Dimensions: 51x42x6mm.

FEATURES

Free Laser Cutter DXF Files:

We've also created some free downloadable resources for you to use with your laser cutter. Included in the downloads are DXF files for designs that fit directly to the Mi:power board that allows you to attach it to your belt, wrist strap, lanyard, stand it on your desk or on a design that can be placed in your garden or a plant pot. You can see some examples of these in the images below.



VIDEO

BBC micro:bit and Kitronik MI:power board ideas

Stuck for inspiration for what you can make with the BBC micro:bit and the MI:power board fro Kitronik?
